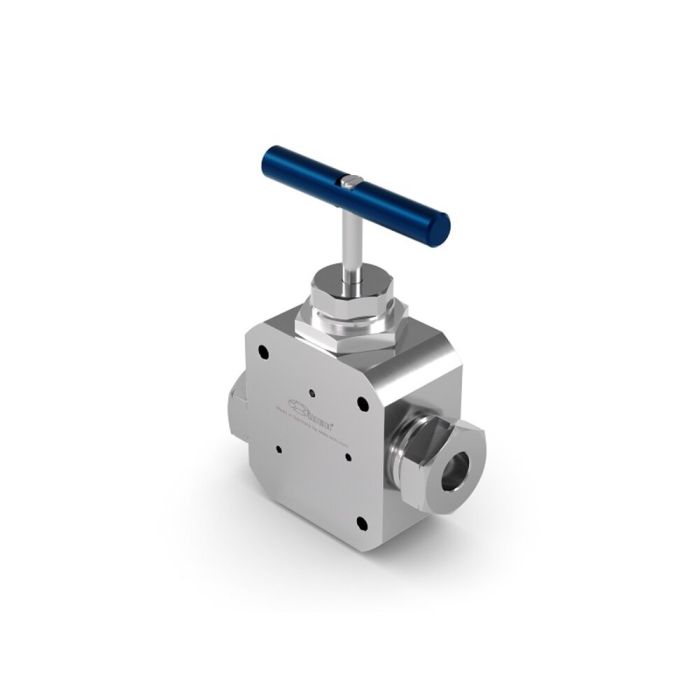

baromax Hand Valve

With straight design, M16x1.5, TNW: 3.5 mm, 2,500 bar

Part no.

C1-189590

€0.00

baromax Hand Valve – Precision Needle Valves for High-Pressure Systems

baromax hand valves are the reliable solution for shutting off and controlling media. Specifically engineered for extreme high-pressure applications, they are used in demanding hydraulic systems such as hydroforming and waterjet cutting.

Your Benefits at a Glance:

Bidirectional shut-off – Can be installed flexibly in any flow direction
High flow rates – Due to a larger nominal size than the inner pipe diameter
Quick actuation – Just two turns to fully open or close the valve
Easy operation – Ergonomic handle ensures precise control
Fast integration – Fully compatible with baromax fittings, identical installation dimensions
User-friendly installation – Multiple mounting hole options for panel or rail mounting

Whether check valves, hand-operated or pneumatically operated needle valves – baromax valves stand for superior quality, long service life, and convenient handling under high pressure.

Technical Data

Technical Data
Technical Nominal Size	3.5 mm
Pressure Range (PS)	2,500 bar
Pressure Equipment Type	Pipe-like, pressure-retaining piece of equipment
Temperature Range	+5 °C up to +50 °C
Medium	Air / Water / Hydraulic oil (only oils according to fluid group 2 DGR)
Material	High-strength stainless steel
Conformity / Tests / Approvals	Certified quality assurance system in accordance with the Pressure Equipment Directive 2014/68/EU Classification: Article 4, paragraph 3

Features & Benefits

Needle valves for shutting off high-pressure lines
Quick opening and closing with just a few turns
Easy installation thanks to numerous mounting options
High flow rates thanks to optimized technical nominal size
Flow possible in both directions
Delivery includes pre-assembled pressure rings and pressure screws

Application

baromax hand valves are specifically designed for high-pressure applications and are primarily used in high-pressure hydraulics. Typical areas of application include:

CAD

Download CAD Files

Downloads

Description	Document type	Language	File type	File size

Product variants

	Part no.	Product Name
	C1-189333	baromax Hand Valve with straight design, M16x1.5, TNW: 2.5 mm, 4,200 bar
	C1-189519	baromax Hand Valve with straight design, 9/16“-18 UNF, TNW: 2.5 mm, 4,200 bar
	C1-189522	baromax Hand Valve with angled design, M16x1.5, TNW: 2.5 mm, 4,200 bar
	C1-189526	baromax Hand Valve with angled design, 9/16“-18 UNF, TNW: 2.5 mm, 4,200 bar
	C1-189549	baromax Hand Valve with straight design, M20x1.5, TNW: 3.2 mm, 4,200 bar
	C1-189550	baromax Hand Valve with straight design, 3/4“-16 UNF, TNW: 3.2 mm, 4,200 bar
	C1-189555	baromax Hand Valve with angled design, M20x1.5, TNW: 3.2 mm, 4,200 bar
	C1-189561	baromax Hand Valve with angled design, 3/4“-16 UNF, TNW: 3.2 mm, 4,200 bar
	C1-189562	baromax Hand Valve with straight design, M30x2, TNW: 4.5 mm, 4,200 bar
	C1-189563	baromax Hand Valve with straight design, 1 1/8“-12 UNF, TNW: 4.5 mm, 4,200 bar
	C1-189570	baromax Hand Valve with angled design, M30x2, TNW: 4.5 mm, 4,200 bar
	C1-189571	baromax Hand Valve with angled design, 1 1/8“-12 UNF, TNW: 4.5 mm, 4,200 bar
	C1-189573	baromax Hand Valve with angled design, M20x1.5, TNW: 5.0 mm, 2,500 bar
	C1-189575	baromax Hand Valve with straight design, M30x2, TNW: 8 mm, 2,500 bar
	C1-189576	baromax Hand Valve with angled design, M30x2, TNW: 8 mm, 2,500 bar
	C1-189577	baromax Hand Valve with straight design, 1 1/8"-12 UNF, TNW: 8 mm, 2,500 bar
	C1-189578	baromax Hand Valve with angled design, 1 1/8“-12 UNF, TNW: 8 mm, 2,500 bar
	C1-189582	baromax Hand Valve with straight design, M20x1.5, TNW: 5 mm, 2,500 bar
	C1-189584	baromax Hand Valve with straight design, 3/4"-16 UNF, TNW: 5 mm, 2,500 bar
	C1-189585	baromax Hand Valve with angled design, 3/4“-16 UNF, TNW: 5 mm, 2,500 bar
	C1-189590	baromax Hand Valve with straight design, M16x1.5, TNW: 3.5 mm, 2,500 bar
	C1-189591	baromax Hand Valve with angled design, M16x1.5, TNW: 3.5 mm, 2,500 bar
	C1-189592	baromax Hand Valve with straight design, 9/16"-18 UNF, TNW: 3.5 mm, 2,500 bar
	C1-189593	baromax Hand Valve with angled design, 9/16“-18 UNF, TNW: 3.5 mm, 2,500 bar
