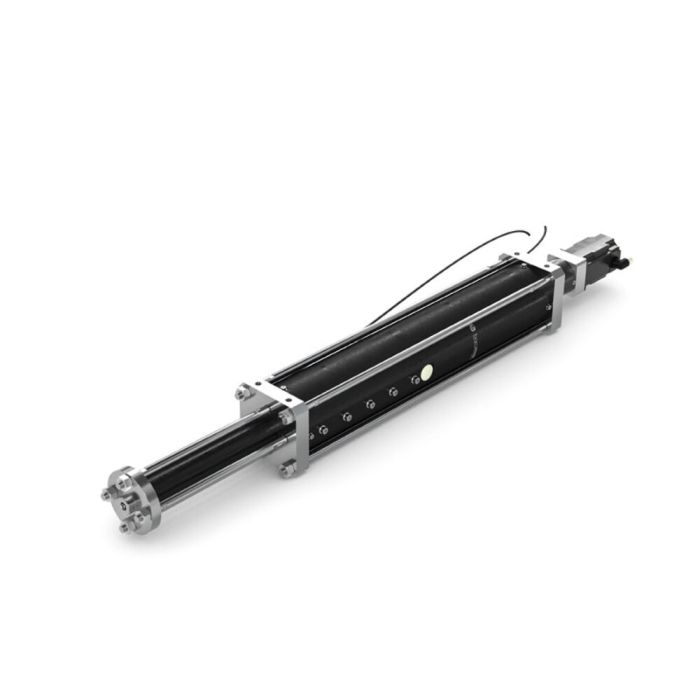

baromax electrical Spindle Pump
Electrical Spindle Pumps – Precision and Maximum Control
Our baromax electrical spindle pumps offer outstanding precision and enable fine control of both pressure and flow rate. They are the ideal solution for applications requiring exact reproducibility and full control. With finely adjustable parameters, they are perfectly suited for demanding industrial and scientific processes.
Particularly in sensitive applications such as hydroforming of automotive components or pressure testing in laboratory environments, baromax electrical spindle pumps stand out with their exceptional accuracy. They allow for precise regulation and adaptation of high working pressures to fit specific production or testing requirements.
Rely on proven technology that combines precision with maximum efficiency – for measurement and testing procedures at the highest pressure levels.
| Nominal bore (DN) | 16 mm |
|---|---|
| Pressure Range (PS) | 700 bar |
| Stroke | 120 cm 3 / ml |
| Temperature Range | +5 °C up to +50 °C |
| Possible pressure ranges | PS = 500 up to 3,000 bar |
| Possible volumes | 0.25 up to 30 l |
| Max. possible length | 2,000 mm |
| Medium | Fluids according to fluid group 2 DGR, e.g. hydraulic oil |
| Material | High-strength stainless steel |
| Connection system | Cone & Thread (60° HP-Fitting) |
| Conformity / Tests / Approvals | Pressure equipment type: Vessels according to article 2 No. 2 of the Pressure Equipment Directive Classification Article 4 paragraph 3 |
- Good accessibility to all connections
- Volume & operating pressure adaptable to customer requirements
- Easy installation in any installation position
- Low-maintenance and durable construction made of high-quality steel
- Wide range of actuator options
The baromax spindle pumps are designed exclusively for use in static high-pressure systems with liquids.
