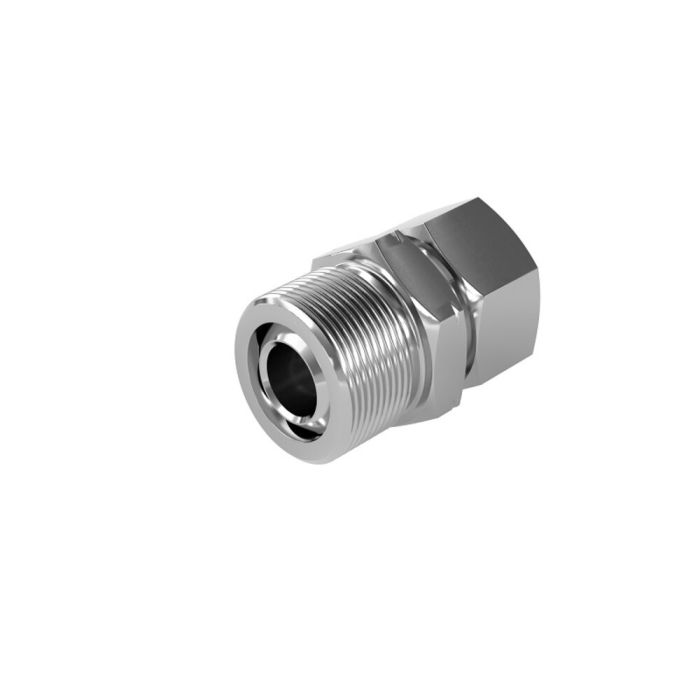

Anti-vibration gland

9/16“-18 UNF, Tubing size: 1/4"

Part no.

C1-185419

€0.00

The anti-vibration gland for applications in high-pressure systems that are exposed to strong external shocks or vibrations. The anti-vibrationgland grips the high-pressure pipe behind the thread and protects the pressure screw from loosening. The scope of delivery consists of pressure ring, anti-vibration gland and clamping nut, which can be used in all ultra-high pressure fittings, elbows, T-pieces and cross-pieces.
The connection geometry is an high pressure fitting 60° cone & thread.

Suitable for external tube diameter: 1/4“
Thread size B1: 9/16“-18 UNF

Downloads

Description	Document type	Language	File type	File size

	Part no.	Product Name
	C1-180994	Anti-vibration gland M30x2, Tubing size 9/16"
	C1-185419	Anti-vibration gland 9/16“-18 UNF, Tubing size: 1/4"
	C1-189019	Anti-vibration gland M20x1.5, Tubing size 3/8"
	C1-189605	Anti-vibration gland 1 1/8“-12 UNF, Tubing size 9/16"
	C1-189607	Anti-vibration gland M16x1.5, Tubing size 1/4"
	C1-189614	Anti-vibration gland 3/4“-16 UNF, Tubing size 3/8"
