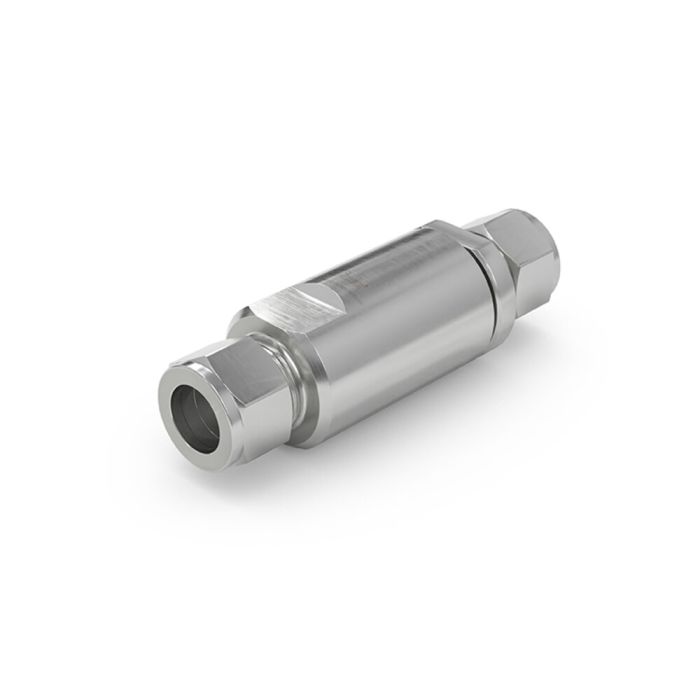

WEH® Valvola di ritegno TVR5 H₂
With the TVR5 H2 WEH offers a high-performance check valve especially for hydrogen buses and trucks. The WEH® TVR5 H2 check valves provide a reliable function wherever hydrogen should only flow in one direction within a pipe system and must be prevented from a return flow.
The check valve system is designed to minimize the effect of dirt particles on the sealing components within the unit.
The WEH® TVR5 H2 Check Valve is constructed of corrosion-resistant stainless steel achieving a very durable unit due to its robust internal structure.
| Diametro nominale (DN) | Depending on design |
|---|---|
| Pressione di esercizio PS max ammessa | PS = 450 bar |
| Pressione nominale (PN) | 35 MPa |
| Campo di temperatura | -40 °C fino a +85 °C |
| Materiali | Acciaio inossidabile |
| Materiali delle guarnizioni | Restistenti al idrogeno |
| Esecuzione | Inclusi i raccordi (per collegamento a vite) |
- Acciaio inossidabile
- Elevata tenuta
- Apertura e chiusura silenziose
- Costruzione compatta
Check valve for buses and trucks, also suitable for installation in hydrogen fueling stations.
The WEH® TVR5 H2 product family is offered as a return flow prevention acc. to DIN EN 736-1 for installation in H2 systems and pipelines.
