WEH® Receptacle TN5 H₂
Codice
TN5-H2
0,00 €

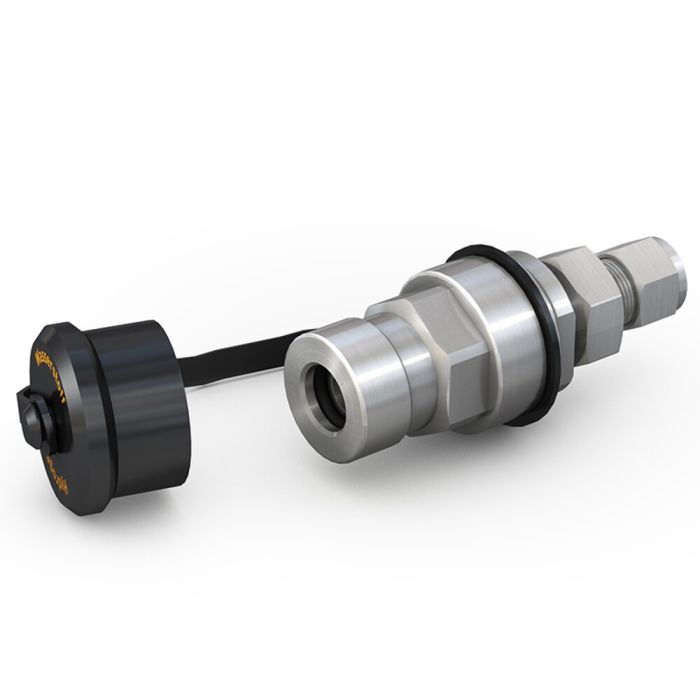

The WEH® TN5 H2 Receptacle is designed specifically for hydrogen refuelling of buses and trucks.
Due to the internal aerodynamic design the receptacle gives low noise (no high frequency whistle) combined with maximum flow rate and fast filling.
The receptacle is a very durable unit, minimizing maintenance and down-time.
The WEH® TN5 H2 Receptacle has an integrated check valve system which is designed to minimize the effect that dirt particles have on the sealing components within the receptacle.
The TN5 H2 is also equipped with a coding for pressure range and gas type.
| Nominal bore (DN) | Depending on design |
|---|---|
| Pressione di esercizio PS max ammessa | MAWP = 45 MPa according to ISO 17268 (PS = 450 bar) |
| Nominal Pressure PN | 35 MPa |
| Temperature Range | -40 °C fino a +85 °C |
| Design | Con cappuccio di protezione parapolvere, filtro impurità integrato (50 μm), valvola di ritegno integrata e raccordi |
| Material | Antiruggine |
| Sealing Material | Restistenti al idrogeno |
| Approval | GB/T 26779-2021 |
- Codifica per stadio di pressione / tipo di gas
- Valvola di ritegno integrata con flusso elevato
- Filtro impurità integrato autopulente (50 μm)
- Rifornimento silenzioso
- Tipo costruttivo salvaguarnizioni
Receptacle for hydrogen refueling / filling of buses, trucks and fork-lift trucks or other industrial applications, to be used with WEH ® TK25 H2 Fueling nozzle.
