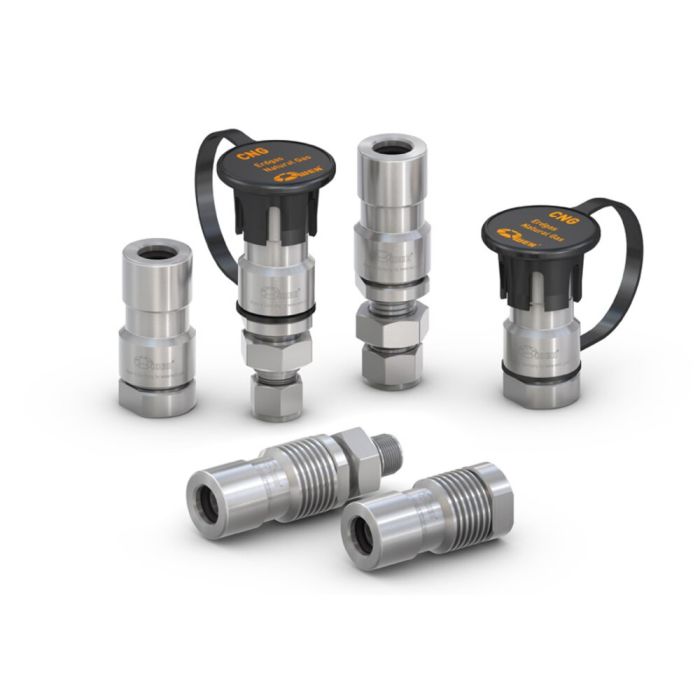

WEH® Valvola di carica TN5 CNG
The WEH® TN5 CNG receptacle is designed specifically for bus and truck refuelling. Due to the internal aerodynamic design the TN5 CNG receptacle gives low noise (no high frequency whistle) combined with maximum flow rate and fast filling. very durable unit, minimizing maintenance and down-time. The TN5 CNG also has an integrated check valve system which is designed to minimize the effect that dirt particles have on the sealing components within the receptacle.
Dati technici Technical Nominal Size Depending on design Pressione nominale (PN) PN = 200 bar (3,000 psi) , PN = 250 bar (3,600 psi) Pressione di esercizio PS max ammessa PS = 260 bar (ECE) (3,700 psi) , PS = 315 bar (4,500 psi) Campo di temperatura -40 °C up to +120 °C (ECE) Materiali Corrosion resistant Materiali delle guarnizioni Natural gas resistant Esecuzione With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) Approval ECE R110
Coding for pressure range / gas type Compatible with fueling nozzles acc. to NGV1 standard and ISO 14469 Integrated high-flow check valve Low-noise refueling Option: integrated particle filter (50 μm) Sealing-friendly design Receptacle for CNG refueling / filling of buses and trucks and fork-lift trucks or other industrial applications, to be used with WEH® Fueling nozzles acc. to NGV1 standard and ISO 14469. Only use receptacles with ECE approval for fitment in road legal vehicles.
Descrizione Tipo di documento Lingua Formato del file Dimensione del file
Si prega di accettare i cookie pubblicitari se si desidera guardare questo video.
Varianti di prodotto
Codice Technical Nominal Size Pressione di esercizio PS max ammessa Esecuzione C1-101485 10 mm 260 bar Without protection cap C1-101906 8 mm 260 bar With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) C1-106903 10 mm 260 bar With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) C1-108330 10 mm 260 bar With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) C1-108583 12 mm 260 bar With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) C1-35401-X1 12 mm 260 bar With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) C1-35432-X1 12 mm 260 bar With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) C1-42194-X1 12 mm 260 bar With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) C1-49817-X1 10 mm 260 bar With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) C1-81615 10 mm 260 bar With protection cap (except for receptacles with ACME thread) and fittings (only for receptacles with tube fitting) C1-84168 14 mm 260 bar Without protection cap
