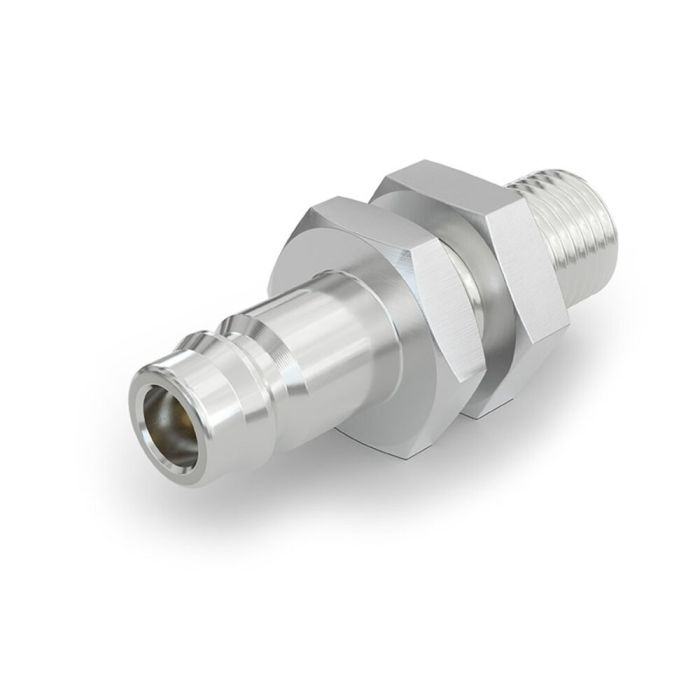

WEH® Service Receptacle TNS10 H₂
Vehicles running on hydrogen have to be serviced and checked regularly. To achieve this, it is necessary to discharge all pressure vessels resp. fuel tanks. The WEH® TNS10 H2 Service Receptacle has been designed for this specific purpose.
It is mounted on the body panel of the hydrogen vehicle and enables easy discharging of the fuel tank.
We recommend that the WEH® TNS10 H2 Service receptacle is used with the WEH® TW110 H2 Service connector. The TW110 H2 needs only to be placed onto the service receptacle and discharging can commence. After discharging, the service nozzle can be disconnected.
| Diametro nominale (DN) | 6 mm |
|---|---|
| Pressione di esercizio PS max ammessa | MAWP = 2 MPa according to ISO 17268 (PS = 20 bar) |
| Pressione nominale (PN) | 1.6 MPa |
| Campo di temperatura | -40 °C fino a +85 °C |
| Ingresso B1 | UN 11/16"-16 male thread for O-Lok® Face Seal for tube Ø 10 (3/8"), Face Seal acc. to SAE J1453 |
| Materiali | Acciaio inossidabile |
| Materiali delle guarnizioni | Restistenti al idrogeno |
| Esecuzione | Incl. integrated shut-off valve, bulkhead fitting and protection cap |
- Incl. protection cap
- Scarico silenzioso
- Tipo costruttivo salvaguarnizioni
Service receptacle for discharging hydrogen fuel tanks.
Operation only by specially trained service personnel. Not for self-service operation!
Attention: The TNS10 H2 may not be used for filling!
Note: The TNS10 H 2 may only be used in conjunction with a suitable upstream shut-off device or valve (e.g. ball valve)!
