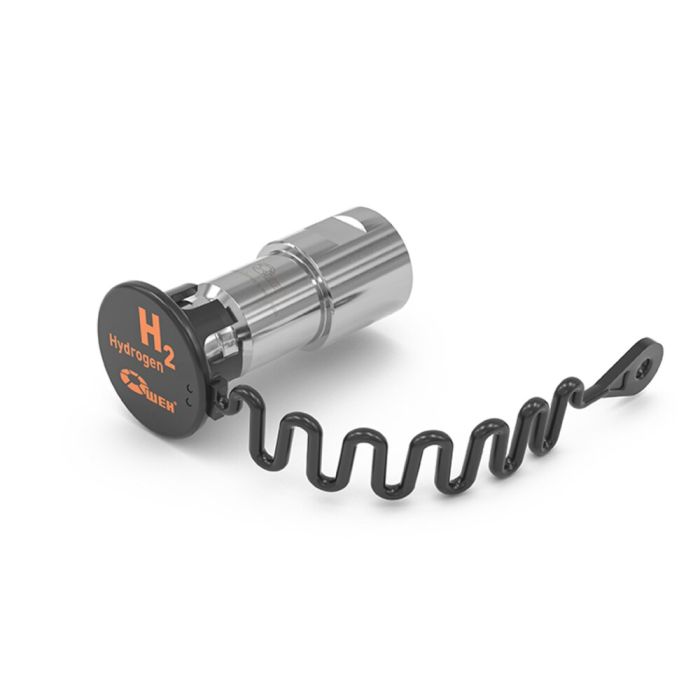

WEH® Service Receptacle TNS1 H₂
For flushing processes and leakage tests of WEH® Fueling nozzles TK16 H₂ / TK17 H₂
Codice
C1-148079
0,00 €
To prevent damage in the fueling nozzle while leak testing during maintenance in the course of which pressure is applied, WEH recommends the use of a service receptacle. This also serves to protect the fueling nozzle from dirt ingress during phases of non-use.
| Campo di pressione | PN = 700 bar | PS = 875 bar |
|---|---|
| Campo di temperatura | -40 °C fino a +85 °C |
| Materiali | Antiruggine |
| Materiali delle guarnizioni | Restistenti al idrogeno |
WEH® Service receptacle H2 incl. dust protection cap for flushing processes and leakage tests of WEH® H2 Fueling nozzles.
