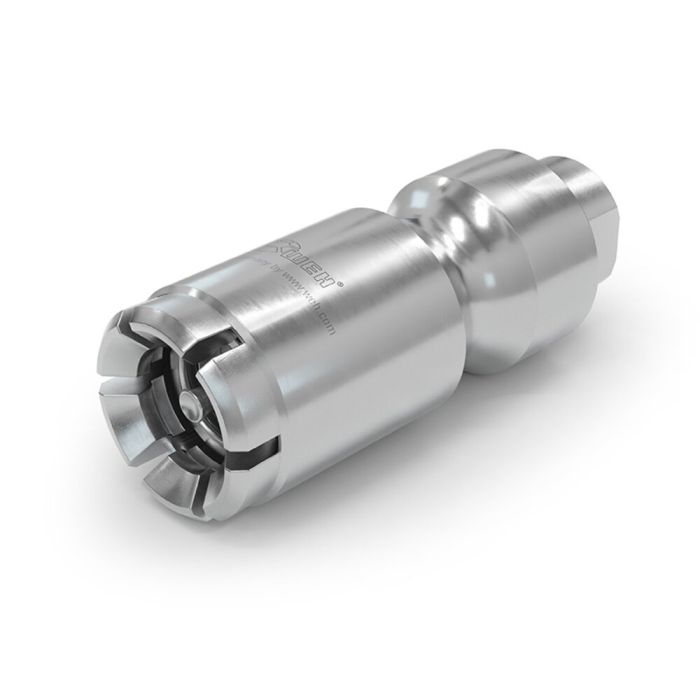

WEH® Service Connector TW110 H₂
Vehicles running on hydrogen have to be serviced and checked regularly. To achieve this, it is necessary to discharge all pressure vessels resp. fuel tanks. The WEH® TW110 H2 Service Connector has been designed for this specific purpose.
The WEH® TW110 Service Nozzle needs only to be placed onto the service receptacle and discharging can commence. After discharging, disconnect the service nozzle.
The Service receptacle TNS10 H2 is mounted on the underside of the H2 vehicle and provides simple discharging of the fuel tank.The included protection cap protects the service receptacle from dirt and damage whilst not in use.
| Pressure Range | PN = 16 bar | PS = 20 bar |
|---|---|
| Temperature Range | -40 °C fino a +85 °C |
| Media Inlet | G1/4" femmina |
| Design | Con valvola di intercettazione integrata |
| Material | Acciaio inossidabile |
| Sealing Material | Restistenti al idrogeno |
- Valvola di non ritorno integrata
- Scarico silenzioso
- Tipo costruttivo salvaguarnizioni
Service connector for discharging hydrogen. Operation only by specially trained service personnel. Not for self-service operation!
