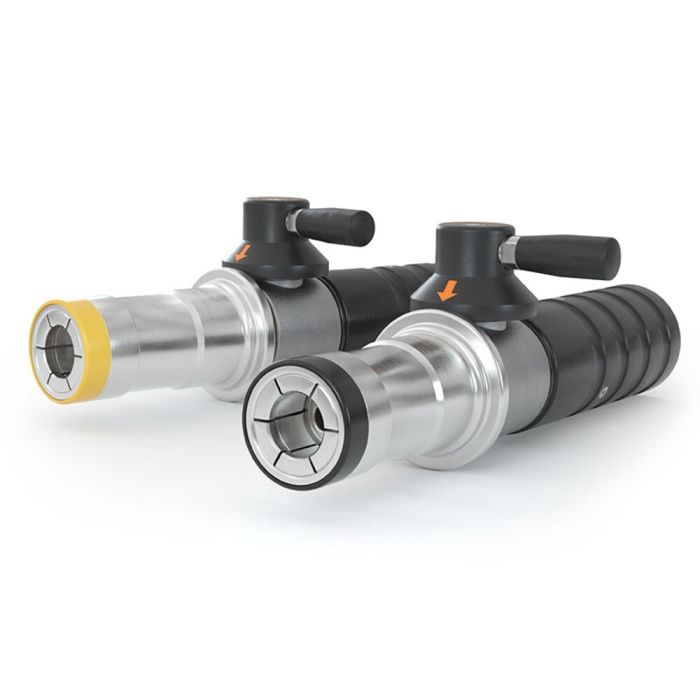

WEH® Mandrino di rifornimento TK26 CNG
Zur Erdgasbetankung von Bussen und LKWs im Self-Service
Codice
TK26-CNG
0,00 €
The TK26 CNG fuelling nozzle is very light in weight and therefore easy to operate.
The integrated swivel joint is located at the actuation lever and can easily be turned into the optimal actuating position.
The compact actuation lever needs less effort to actuate the nozzle.
| Technical Nominal Size | 12 mm |
|---|---|
| Pressione nominale (PN) | P30HD acc. to ANSI NGV1 / C200 acc. to ISO 14469 PN = 200 bar (3,000 psi) P36HD acc. to ANSI NGV1 / C250 acc. to ISO 14469 PN = 250 bar (3,600 psi) |
| Pressione di esercizio PS max ammessa | PS = 300 bar (4,300 psi) , PS = 350 bar (5,000 psi) |
| Campo di temperatura | -40 °C up to +85 °C |
| Ingresso B1 | UNF 7/8“-14 male thread, SAE J514, 37° cone |
| Materiali | Corrosion resistant |
| Materiali delle guarnizioni | Natural gas resistant |
| Esecuzione | With plastic thermal protection and gas recirculation |
| Peso | Approx. 3.4 kg (7.50 lbs.) |
| Approval | In accordance with ISO 14469 |
- Coding for pressure range / gas type
- Super light -> only 3400 grams
- Compatible with receptacles acc. to NGV1 standard and ISO 14469
- Easy operation
- High flow rate -> short filling times
- High-grade materials
- Plastic thermal protection
- Recirculation of the vented gas
- WEH® Jaw Locking Mechanism

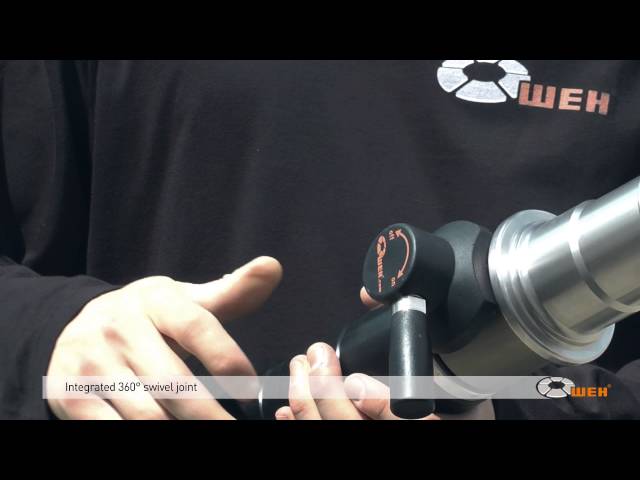

- WEH® EASY-TURN 360° swivel joint for actuation lever
- Color coded impact protection (200 bar / 3000 psi black , 250 bar / 3600 psi yellow)
Fueling nozzle for CNG fast filling of buses and trucks at self-service fueling stations to be used with WEH® Receptacles acc. to NGV1 standard and ISO 14469.
