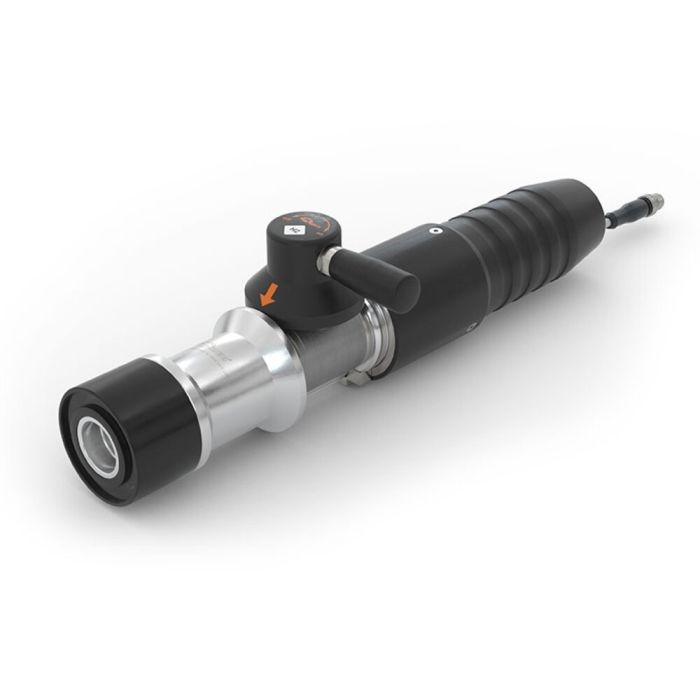

WEH® Fueling Nozzle TK16 H₂ High Flow
WEH® TK16 H2 High-Flow Fueling Nozzle with Data Interface provides a faster hydrogen refueling solution for buses and trucks.
An increased flow rate achieves even faster filling times.
The actuation lever is located on the integrated swivel joint making it easy to rotate into the optimal actuating position. The actuation lever needs less effort to actuate the nozzle.
The internal coding for pressure range and gas type ensures that the TK16 H2 High-Flowwith data interface can be connected to the compatible WEH® Receptacles and also prevents the risk of confusion with natural gas. Furthermore the fueling nozzle has an interface (IR) for data transfer between vehicle and fueling station.
| Diametro nominale (DN) | 8 mm |
|---|---|
| Pressione di esercizio PS max ammessa | MAWP = 45 MPa according to ISO 17268 (PS = 450 bar) |
| Pressione nominale (PN) | 35 MPa |
| Temperature Range Media | -20 °C fino a +85 °C |
| Temperature Range Ambient | -40 °C fino a +85 °C |
| Campo di temperatura | -20 °C fino a +85 °C |
| Ingresso B1 | UNF 9/16"-18 maschio, SAE J514 JIC 37° |
| Materiali | Antiruggine |
| Materiali delle guarnizioni | Restistenti al idrogeno |
| Esecuzione | Con rivestimento di isolamento termico in materiale sintetico, sistema di recupero del gas e interfaccia dati intercambiabile secondo J2601. |
| Nozzle Type | Type A acc. to SAE J2600:2015 and previous resp. ISO 17268:2012 and previous |
| Peso | Circa 2,4 kg |
| Approval | Fueling nozzle: tests acc. to SAE J2600:2002 IR data interface: ATEX; NEC on request |
- Compatible with WEH® TN1 H2 High-Flow Receptacle profile
- Meccanismo a pinze segmentate WEH®
- Giunto rotante WEH® EASY-TURN fino a 240° per leva di azionamento
- Recuopero del gas residuo
- Integrated infrared data interface
- Materiali di alta qualità
- Facilità di gestione
- Codifica per stadio di pressione / tipo di gas
- Type A nozzle acc. to SAE J2600 resp. ISO 17268
- Impugnatura isolato termicamente
High-Flow fueling nozzle for H2 fast filling of buses and trucks at self-service fueling stations.
