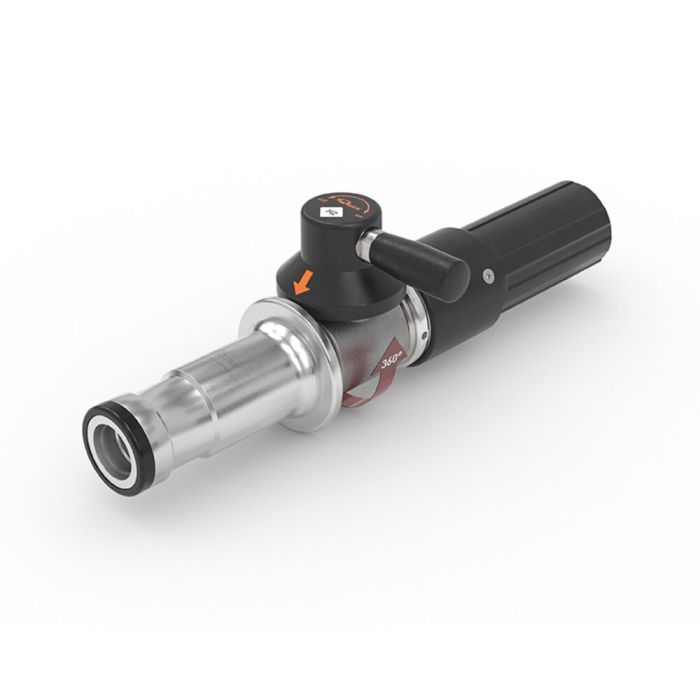

WEH® Fueling Nozzle TK16 H₂ High-Flow
For fast filling buses and trucks, self-service, 35 MPa
Codice
C1-85042-X01
0,00 €
The WEH® TK16 H2 High-Flow Fueling Nozzle provides a faster hydrogen refueling solution for buses and trucks.
An increased flow rate achieves even faster filling times.
The actuation lever is located on the integrated swivel joint making it easy to rotate into the optimal actuating position. The actuation lever needs less effort to actuate the nozzle.
The internal coding for pressure range and gas type ensures that the WEH® TK16 H2 High-Flow can be connected to the compatible WEH® Receptacles and also prevents the risk of confusion with natural gas.
| Nominal bore (DN) | 8 mm |
|---|---|
| Pressione di esercizio PS max ammessa | MAWP = 45 MPa according to ISO 17268 (PS = 450 bar) |
| Nominal Pressure PN | 35 MPa |
| Temperature Range Media | -20 °C fino a +85 °C |
| Temperature Range Ambient | -40 °C fino a +85 °C |
| Media Inlet | UNF 9/16"-18 maschio, SAE J514 JIC 37° |
| Design | Con rivestimento di isolamento termico in materiale sintetico e sistema di recupero del gas |
| Material | Antiruggine |
| Sealing Material | Restistenti al idrogeno |
| Medium Note | Suitable for pre-cooled hydrogen |
| Weight | Circa 1,8 kg |
| Approval | Tests acc. to SAE J2600:2002 |
- Codifica per stadio di pressione / tipo di gas
- Compatibile con profilo valvola WEH® TN1 H₂ High-Flow
- Facilità di gestione
- Materiali di alta qualità
- Valori di flusso maggiori -> Tempi di rifornimento ancora inferiori
- Impugnatura isolato termicamente
- Recuopero del gas residuo
- Type A nozzle acc. to SAE J2600 resp. ISO 17268
- Giunto rotante WEH® EASY-TURN a 360° per leva di azionamento
- Meccanismo a pinze segmentate WEH®
High-Flow fueling nozzle for H2 fast filling of buses and trucks at self-service fueling stations.
