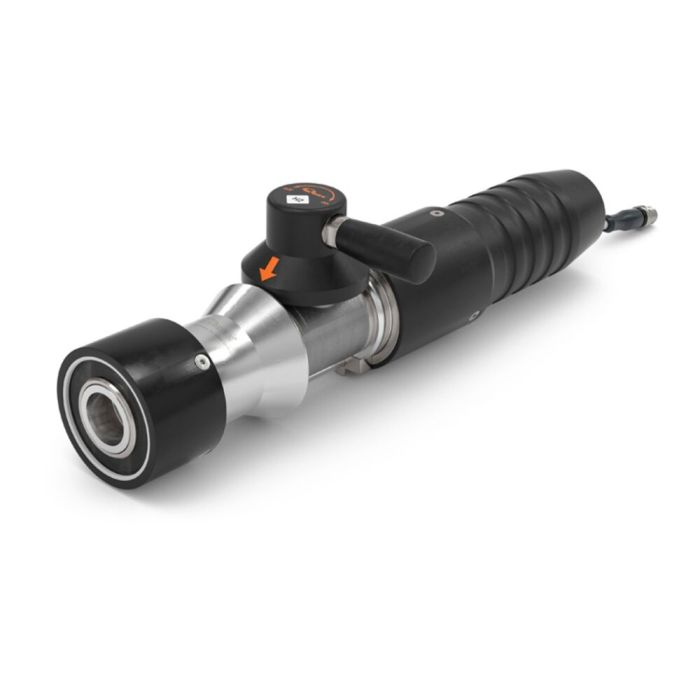

WEH® Fueling Nozzle TK16 H₂ 35 MPa ENR
With the WEH® TK16 H2 35 MPa ENR the user has a fueling nozzle for hydrogen that makes refueling cars with compressed gaseous hydrogen (CGH2 ) even easier than before. The fueling nozzle with exchangeable data interface is easy to operate and thus increases operator comfort.
The integrated swivel joint is located directly on the actuation lever, making it easy to rotate the fueling nozzle to the optimum connection position. The actuating lever can be switched with little effort when connecting and disconnecting.
The internal coding for pressure range and gas type ensures that the TK16 H2 35 MPa ENR can be connected to the compatible WEH® Receptacles acc. to the opposite table and also prevents the risk of confusion with natural gas. Furthermore, the fueling nozzle has an exchangeable interface (infrared) for data transfer between the vehicle and the fueling station.
The WEH® TK16 H2 35 MPa ENR offers optimum safety for the operator. The fueling nozzle remains connected to the receptacle until the gas between inlet valve and receptacle is depressurized.
| Nominal bore (DN) | 8 mm |
|---|---|
| Pressione di esercizio PS max ammessa | MAWP = 45 MPa according to ISO 17268 (PS = 450 bar) |
| Nominal Pressure PN | 35 MPa |
| Temperature Range Media | -20 °C fino a +85 °C |
| Temperature Range Ambient | -40 °C fino a +85 °C |
| Media Inlet | UNF 9/16"-18 maschio, SAE J514 JIC 37° |
| Design | "With plastic thermal protection, gas recirculation and exchangeable data interface acc. to SAE J2799" |
| Material | Antiruggine |
| Sealing Material | Restistenti al idrogeno |
| Nozzle Type | Type A acc. to SAE J2600:2015 and previous resp. ISO 17268:2012 and previous |
| Weight | Circa 2,4 kg |
| Approval | Fueling nozzle: tests acc. to SAE J2600:2002 IR data interface: SAE J2799 and ATEX, NEC, KTL or CCC |
- Codifica per stadio di pressione / tipo di gas
- Compatibile con profilo valvola WEH® TN1 H₂
- Facilità di gestione
- Interfaccia dati intercambiabile (ENR)
- Valori di flusso massimi -> Tempi di riempimento ridotti
- Materiali di alta qualità
- Integrated infrared data interface
- Impugnatura isolato termicamente
- Recuopero del gas residuo
- Type A nozzle acc. to SAE J2600 resp. ISO 17268
- Giunto rotante WEH® EASY-TURN fino a 240° per leva di azionamento
- Meccanismo a pinze segmentate WEH®
Fueling nozzle with data interface for H2 fast filling of electric / hybrid cars with fuell cells (FCV) at self-service fueling stations.
| Descrizione | Tipo di documento | Lingua | Formato del file | Dimensione del file |
|---|
