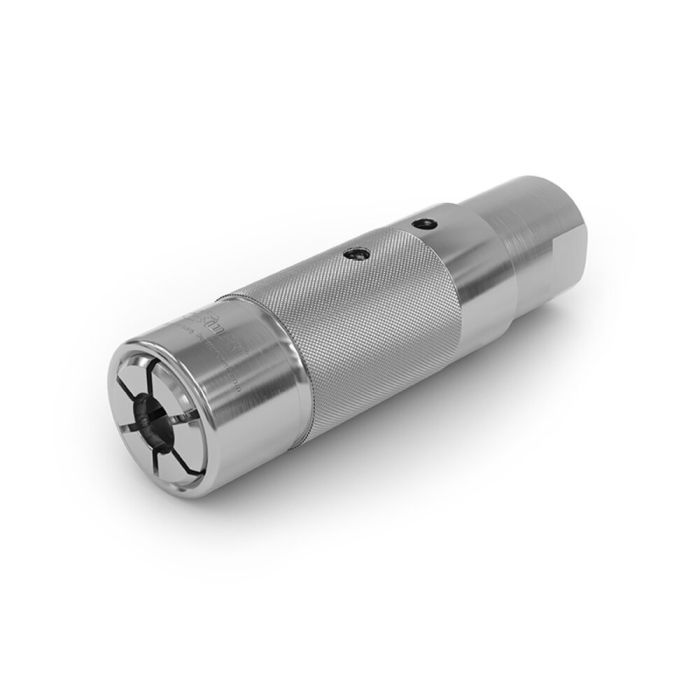

WEH® Innesto TW723
The WEH® Test connector TW723 has been specifically developed to connect fuel lines for engine hot testing and for leak and function testing.
Manufactured from high-quality materials, the fuel connector is particularly durable. The design of the connector is best suited for narrow spaces and meets the demand of such applications.
The quick coupling has a central test port (optional 90° possible) for ease of use. No need for time-consuming and tedious hand threading, thus saving costs and repetitive strain injury.
An integrated shut-off valve prevents leakage of fuel and enables a clean and safe operation.
| Pressione di esercizio PS max ammessa | 10 bar (145 psi) |
|---|---|
| Campo di temperatura | +5 °C fino a +100 °C |
| Fluidi | Petrol, Diesel, compressed air |
| Azionamento | Manual actuation via grip sleeve |
| Materiali | Corrosion resistant |
| Materiali delle guarnizioni | FKM |
| Esecuzione | With integrated shut-off valve |
- Central test port
- Connection in seconds
- High-grade materials
- Integrated shut-off valve
- No hand tightening required
- Robust construction
Innesto rapido per prove di pressione / funzionamento sulle linee per carburante con collare, scanalatura o filettatura esterna. Anche disponibile como innesto speciale per il collaudo dei condotti in gomma per carburante sul motore.
