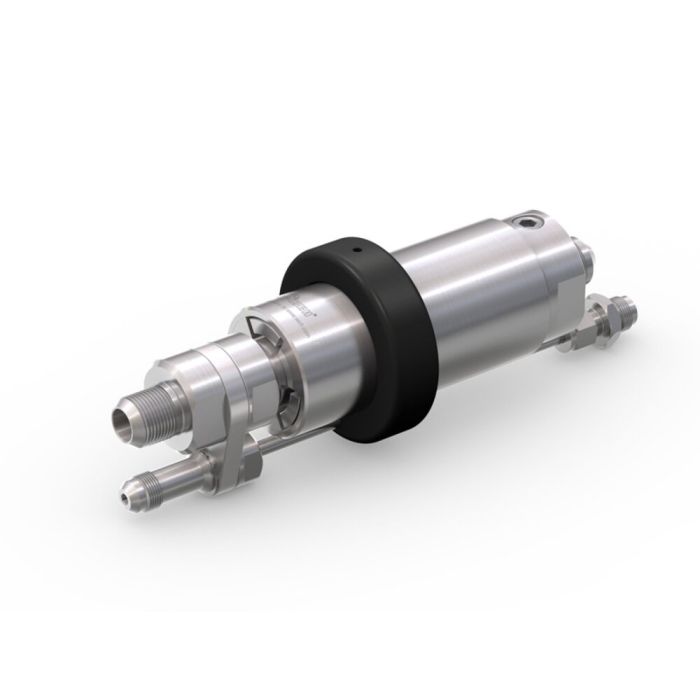

WEH® Inline Breakaway Coupling TSA6 H₂
The WEH® TSA6 H2 Inline Breakaway Coupling which is installed inbetween the filling and venting hoses, is also available for bus and truck fueling stations.
In the event of accidental deployment, e.g. driving a vehicle from the dispenser with the nozzle remaining in the vehicle fuel port, the coupling will separate the connections between dispenser and hose sealing both ends. This protects largely the receptacle, the fueling nozzle and the dispenser against damage. The detached coupling can be easily reattached and placed back in service after having been function tested.
The WEH® Breakaway Coupling consists of a coupling body, a receptacle insert and a gas recirculation.
On request we also offer complete nozzle-hose-assemblies consisting of a fueling nozzle, a hose set and an inline breakaway coupling.
| Nominal bore (DN) | 12 mm |
|---|---|
| Pressione di esercizio PS max ammessa | MAWP = 45 MPa according to ISO 19880-1 (PS = 450 bar) |
| Nominal Pressure PN | 35 MPa |
| Temperature Range Media | -20 °C fino a +85 °C |
| Temperature Range Ambient | -40 °C fino a +85 °C |
| Media Inlet | UNF 7/8“-14 maschio, SAE J514, 37° cono |
| Design | Con recupero del gas |
| Material | Acciaio inox antiruggine, alluminio |
| Sealing Material | Restistenti al idrogeno |
| Break force | 222 - 667 N |
- Azionamento a eccentrico mediante chiave a brugola
- Installazione tra i flessibili di riempimento e di recupero
- Flangia di ritegno
- Riutilizzabile senza riparazione in officina
- Struttura piccola e compatta
Inline breakaway coupling for H2 bus and truck fueling stations for installation inbetween the filling and venting hoses.
