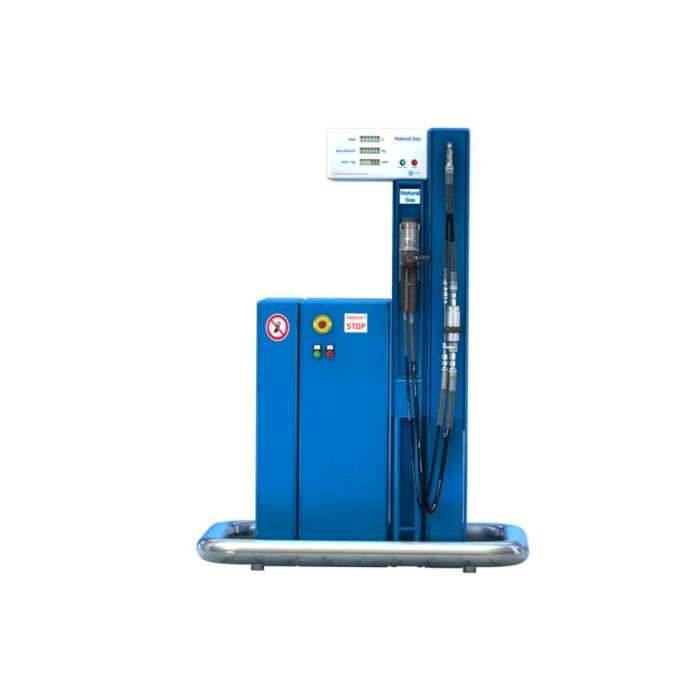

WEH® Fueling assembly TK26 CNG
Consisting of fuelling nozzle, a hose set and a (inline) breakaway coupling
Codice
TK26-CNG-FA
0,00 €
We also offer complete sets assembled and pressure tested for installation at fuelling stations. The fueling assemblies consist of a fuelling nozzle, a hose set and a breakaway coupling.
All fueling assemblies are available with different hose lengths and can either be delivered with a type TSA5 CNG breakaway coupling directly mounted at the dispenser or a type TSA6 CNG inline breakaway coupling mounted inbetween the hoses.
| Nominal bore (DN) | 12 mm |
|---|---|
| Pressure Range | PS = 345 bar |
| Temperature Range | -40 °C fino a +85 °C |
| Design | Mandrino di rifornimento TK26 CNG, flessibili e sicurezza di rottura, set completi montati e a prova di pressione |
| Material | Antiruggine |
| Sealing Material | Resistenti al gas metano |
- Completamente montato e a prova di pressione
- Valori di flusso massimi -> Tempi di riempimento ridotti
Fueling assembly for CNG fast filling of buses and trucks at self-service fueling stations.
