WEH® Filter TSF4 CNG
Contaminants in the gas flow can enter the vehicle‘s storage tank during refuelling. These dirt particles in the natural gas fuel may cause damage to the sealing components.
WEH, therefore, offers CNG filter for clean natural gas. Solid particles are captured reliably.
The filter element can be removed and is re-usable after having been cleaned.
The TSF4 CNG filter is mainly used for onboard CNG powered vehicles, but can also be used for fuelling stations and dispensers.

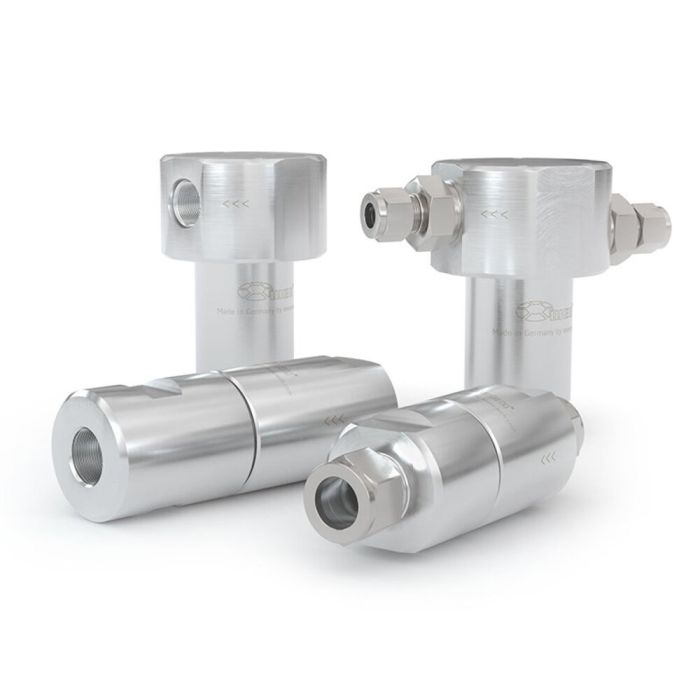

The TSF4 CNG round filter is available with double ferrule fitting or internal thread on both sides or external and internal thread. TSF4 CNG T-filter has been specially designed for use in CNG buses and trucks. The filter can be removed for cleaning purposes without tedious unscrewing of the media lines.
| Nominal bore (DN) | A seconda della versione |
|---|---|
| Pressure Range | PN = 200 bar | PS = 260 bar (ECE)<br>PN = 200 bar | PS = 300 bar |
| Temperature Range | -40 °C fino a +120 °C (ECE) -40 °C fino a +85 °C |
| Filter Material | a seconda della versione, 40 o 10 μm, |
| Design | Inclusi i raccordi (per collegamento a vite) |
| Material | Acciaio inossidabile |
| Sealing Material | Resistenti al gas metano |
| Approval | ECE R110 |
- Approvazione ECE disponibili
- Il dispositivo di filtraggio può essere pulito
- Per gas metano pulito e filtrato
Filter for installation onboard CNG vehicles and in fueling stations. Only use filters with ECE approval for fitment in road legal vehicles.
