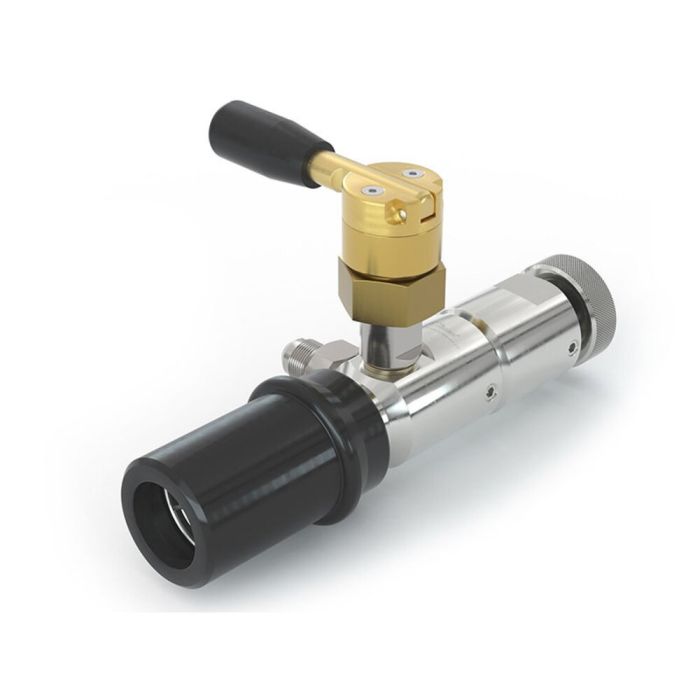

WEH® Defueling Nozzle TK6 H₂
With venting valve
Codice
C1-104732-X01
0,00 €
Cars running on hydrogen have to be serviced and checked regularly, a process involving the discharge of their pressurized fuel tanks. The WEH® TK6 H₂ defuelling nozzle with venting valve has been designed for this specific purpose.
The defuelling nozzle is simply engaged onto the receptacle of the cars and the knurled spindle fully turned until the receptacle is fully open. Discharge can now take place through the lateral media discharge vent.
| Nominal bore (DN) | 6 mm |
|---|---|
| Pressione di esercizio PS max ammessa | MAWP = 43.75 MPa according to ISO 17268 (PS = 450 bar) |
| Nominal Pressure PN | 35 MPa |
| Temperature Range Media | -20 °C fino a +85 °C |
| Temperature Range Ambient | -40 °C fino a +85 °C |
| Design | Con rivestimento di isolamento termico in materiale sintetico, mandrino di apertura e con valvola di spurgo |
| Material | Antiruggine |
| Sealing Material | Restistenti al idrogeno |
| Weight | Circa 1,2 kg |
- Scarico tramite raccordo di riempimento
- Valvola di spurgo integrata
- Comando tramite mandrino di apertura
- Idoneo solo per la valvola di carica WEH® TN1 H₂ (senza filtro)
- Impugnatura isolato termicamente
Defueling nozzle for discharging hydrogen fuel tanks of cars via filling receptacle, only to be used with WEH® TN1 H2 Receptacles without filter. Operation only by specially trained personnel. Not for self-service operation!
Attention: The TK6 H2 may not be used for filling!
