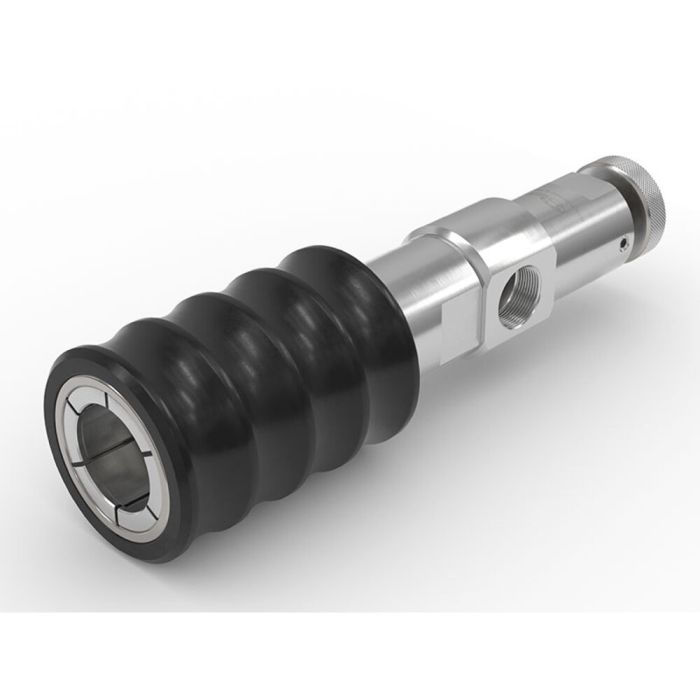

WEH® Defueling Nozzle TK21 CNG
For discharging buses and trucks through the filling receptacle
Codice
C1-12641-X2-X01
0,00 €
Buses and trucks running on natural gas have to be serviced and checked regularly, a process involving the discharge of their pressurized fuel tanks.
The WEH® TK21 CNG defuelling nozzle has been designed for this specific purpose.
The defuelling nozzle is simply engaged onto the receptacle of the bus/truck and the knurled spindle fully turned until the receptacle is fully open. Discharge can now take place through the lateral media discharge vent.
| Technical Nominal Size | 8 mm |
|---|---|
| Pressione nominale (PN) | 250 bar |
| Pressione di esercizio PS max ammessa | 350 bar |
| Campo di temperatura | -40 °C fino a +85 °C |
| Materiali | Antiruggine |
| Materiali delle guarnizioni | Resistenti al gas metano |
| Esecuzione | Con rivestimento di isolamento termico in materiale sintetico e mandrino di apertura |
| Peso | Circa 2,1 kg |
- Scarico tramite raccordo di riempimento
- Comando tramite mandrino di apertura
- Nessun organo di intercettazione supplementare necessario
- Idoneo solo per valvole di carica WEH® TN5 CNG (senza filtro)
- Impugnatura isolato termicamente
Defueling Nozzle for discharging of CNG fuel tanks of buses and trucks through the filling receptacle. Only to be used with WEH® TN5 CNG receptacles without a filter. Operation only by specially trained personnel. Not for self-service operation!
