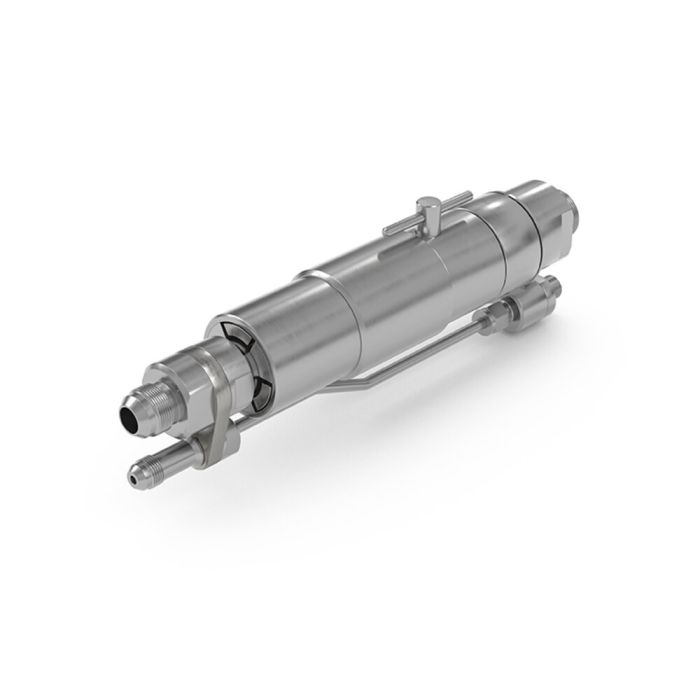

WEH® Breakaway Coupling TSA5 H₂
The break-away coupling type TSA5 H₂ (bus/truck) offer additional safety for your fueling station. The coupling consists of a receptacle and a nozzle which are installed between the dispenser and the fueling hose.
In the event of accidental deployment, e.g. driving a vehicle from the dispenser with the nozzle remaining in the vehicle fuel port, the coupling will separate and protect your dispensing equipment against damage. The detached coupling can be easily reattached and placed back in service after having been function tested.
The integrated filter system provides clean hydrogen and is easy to maintain.
The WEH® Breakaway Coupling consists of a coupling body, a receptacle insert and a gas recirculation with check valve.
On request we also offer complete nozzle-hose-assemblies consisting of a fueling nozzle, a hose set and a breakaway coupling.
| Nominal bore (DN) | 12 mm |
|---|---|
| Pressione di esercizio PS max ammessa | MAWP = 45 MPa according to ISO 19880-1 (PS = 450 bar) |
| Nominal Pressure PN | 35 MPa |
| Temperature Range Media | -20 °C fino a +85 °C |
| Temperature Range Ambient | -40 °C fino a +85 °C |
| Media Inlet | G3/4" maschio |
| Design | Con recupero del gas e filtro (40 μm) |
| Material | Acciaio inox antiruggine, alluminio |
| Sealing Material | Restistenti al idrogeno |
| Break force | 222 - 667 N |
- Valvola di ritegno sulla tubazione di spurgo
- Installazione sul distributore
- Filtro lavabile integrato (40 μm)
- Nessun attrezzo supplementare
- Riutilizzabile senza riparazione in officina
- Struttura piccola e compatta
Breakaway coupling for H2 bus and truck fueling stations for direct installation at the dispenser.
