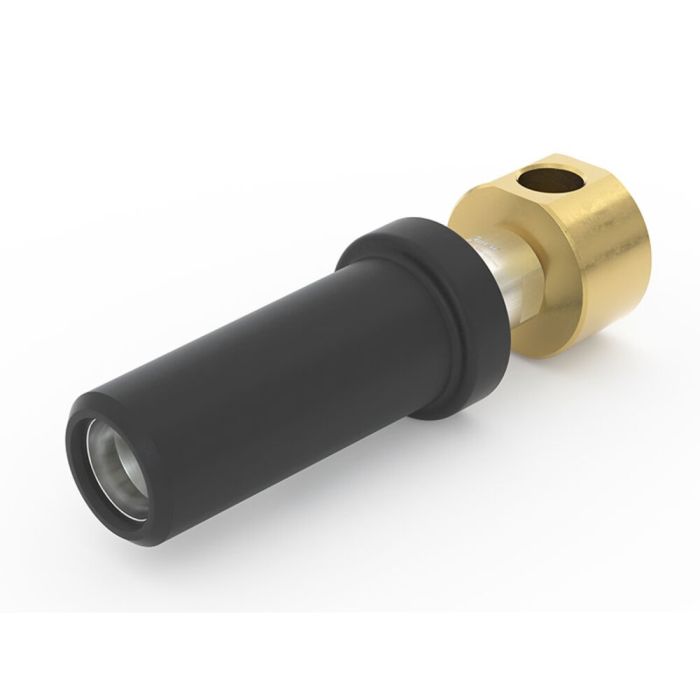

WEH® Adaptor Nozzle TK4 CNG GOST
The NGV1 standard is not yet in use in filling stations and vehicles in all countries.
To allow refueling between the NGV1 standard and other country-specific standards, WEH offers a range of adaptor nozzles.
To refuel NGV1 / ISO 14469 vehicles at filling stations in Russia with the GOST standard, WEH has developed the TK4 CNG GOST adaptor nozzle.
Operating the nozzle is quite simple. The adaptor nozzle is simply positioned straight and pushed onto the receptacle. The clamping jaws of the TK4 CNG GOST firmly clamp the receptacle. When the nozzle is connected, the integrated shut-off valve opens – the pressure-tight connection is established.
Unlike the frequently used ball coupling, the clamping jaws of the TK4 CNG GOST leave no marks on the receptacle.
Thanks to the elongated design of the adaptor nozzle, even receptacles that are difficult to reach can easily be refuelled.
| Pressure Range | P30 secondo ANSI NGV1 / B200 secondo ISO 14469<br>PN = 200 bar | PS = 300 bar |
|---|---|
| Temperature Range | -40 °C fino a +85 °C |
| Media Inlet | GOST Ø 18,0 mm |
| Material | Antiruggine |
| Sealing Material | Resistenti al gas metano |
- Costruzione compatta
- Materiali di alta qualità
- Impugnatura isolato termicamente
- Azionamento Push-Pull
- Meccanismo a pinze segmentate WEH®
Adaptor nozzle for CNG filling of cars having a NGV1 / ISO 14469 receptacle profile at car fueling stations with NZ/GOST standard. Operation only by specially trained service personnel. Not for self-service operation!
