WEH® Service Receptacle TNS1 H₂
For flushing processes and leakage tests of WEH® Defueling nozzles TK6 H₂
Part no.
C1-157639
€0.00
To prevent damage in the defueling nozzle while leak testing during maintenance in the course of which pressure is applied, WEH recommends the use of a service receptacle. This also serves to protect the defueling nozzle from dirt ingress during phases of non-use.
| Pressure Range | PN = 700 bar (10,000 psi) | PS = 875 bar |
|---|---|
| Temperature Range | -40 °C up to +85 °C |
| Material | Corrosion resistant |
| Sealing Material | Hydrogen resistant |

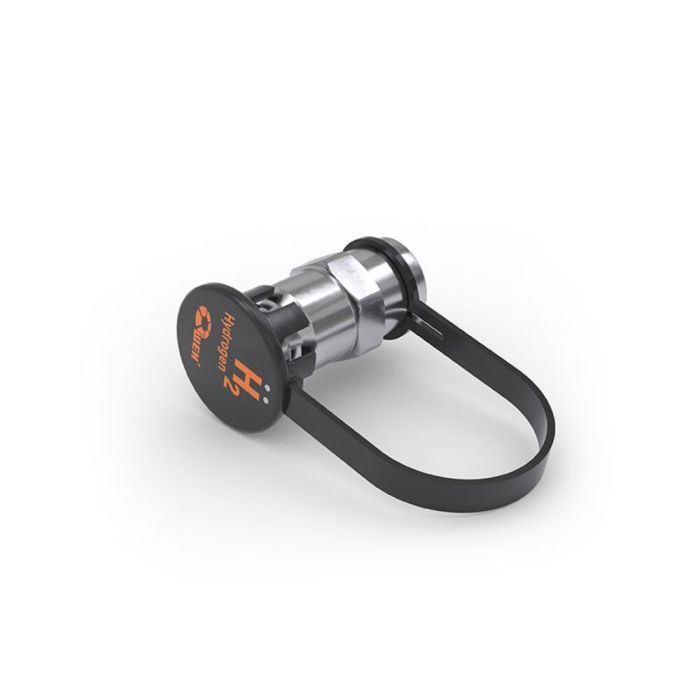

WEH® Service receptacle H2 incl. dust protection cap for flushing processes and leakage tests of WEH® H2 Defueling nozzles.
