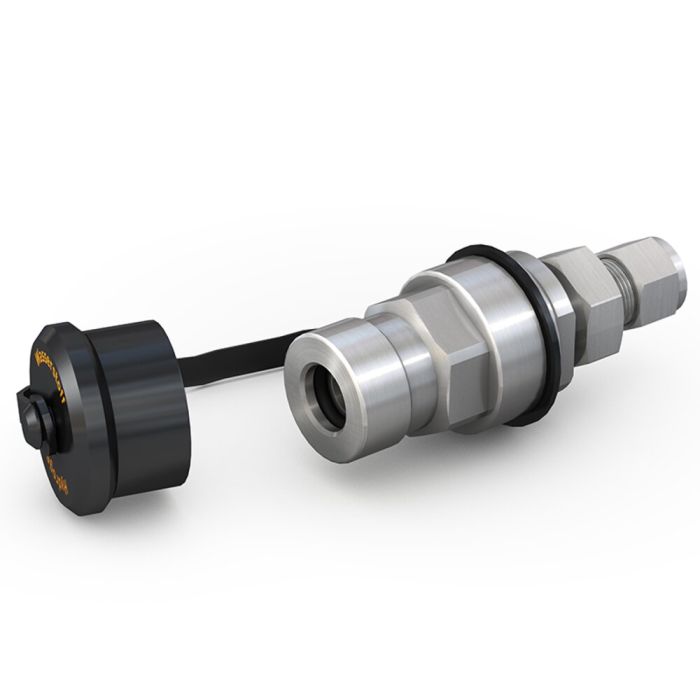

WEH® Receptacle TN5 H₂
Part no.
TN5-H2
€0.00
The WEH® TN5 H2 Receptacle is designed specifically for hydrogen refueling of buses and trucks.
Due to the internal aerodynamic design the receptacle gives low noise (no high frequency whistle) combined with maximum flow rate and fast filling.
The receptacle is a very durable unit, minimizing maintenance and down-time.
The WEH® TN5 H2 Receptacle has an integrated check valve system which is designed to minimize the effect that dirt particles have on the sealing components within the receptacle.
The TN5 H2 is also equipped with a coding for pressure range and gas type.
| Nominal bore (DN) | Depending on design |
|---|---|
| Operating Pressure | MAWP = 45 MPa according to ISO 17268 (PS = 450 bar) |
| Nominal Pressure PN | 35 MPa |
| Temperature Range | -40 °C up to +85 °C |
| Design | With protection cap, integrated particle filter (50 μm), integrated check valve and fittings |
| Material | Corrosion resistant |
| Sealing Material | Hydrogen resistant |
| Approval | GB/T 26779-2021 |
- Coding for pressure range / gas type
- Integrated high-flow check valve
- Integrated self-cleaning particle filter (50 μm)
- Low-noise refueling
- Sealing-friendly design
