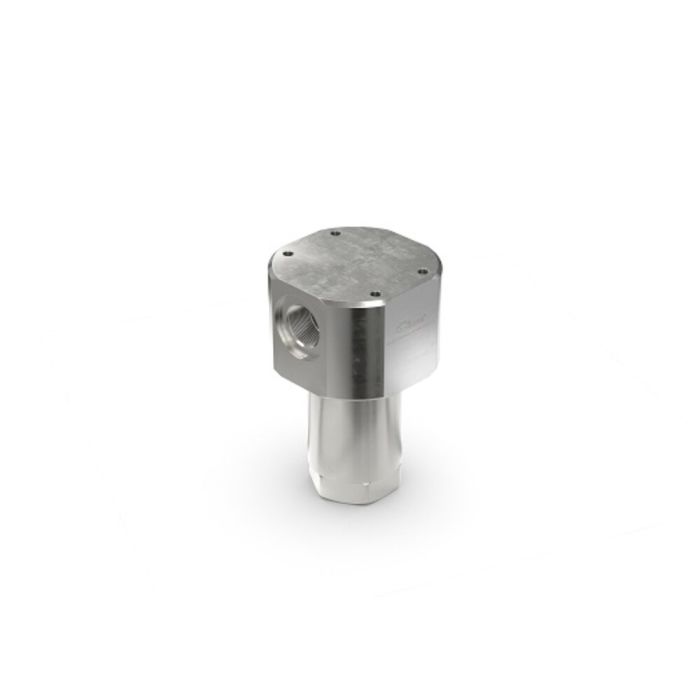

WEH® Particle filter TSF4
For technical gases in industrial applications
Part no.
C1-189541
€0.00
Effective particle filtration for technical gases
In compressed gas lines, solid impurities such as rust, abrasion or dust particles can lead to malfunctions and damage to downstream components - such as seals, valves or measuring systems.
The TSF4 reliably retains particles and thus protects sensitive system areas. The replaceable filter element can be removed for cleaning and reused several times - for low-maintenance and sustainable operation.
The filter was designed for use in industrial gas lines and is also suitable for systems in which technical gases such as argon, helium or gases with a high degree of purity are required.
| PED Nominal Size DN | DN 23 |
|---|---|
| Max. allowable operating pressure PS | PS = 45 MPa |
| Temperature Range | -40 °C up to +85 °C |
| Medium | Air / compressed air / inert gas (nitrogen, argon, helium) |
| Material | Corrosion resistant |
| Sealing Material | FKM / PTFE |
| Filter type | T-Filter |
| Filter element | 10 μm |
| Conformity / Tests / Approvals | Compliant with PED 2014/68/EU |
- For reliably purified compressed air and inert gases
- Robust and cleanable filter insert - reusable
- Suitable for installation in industrial gas supply systems
Particle filter for installation in:
- Supply lines with inert gases and compressed air
- Systems in mechanical and plant engineering
- Technical gas applications in accordance with the Pressure Equipment Directive 2014/68/EU (PED)
