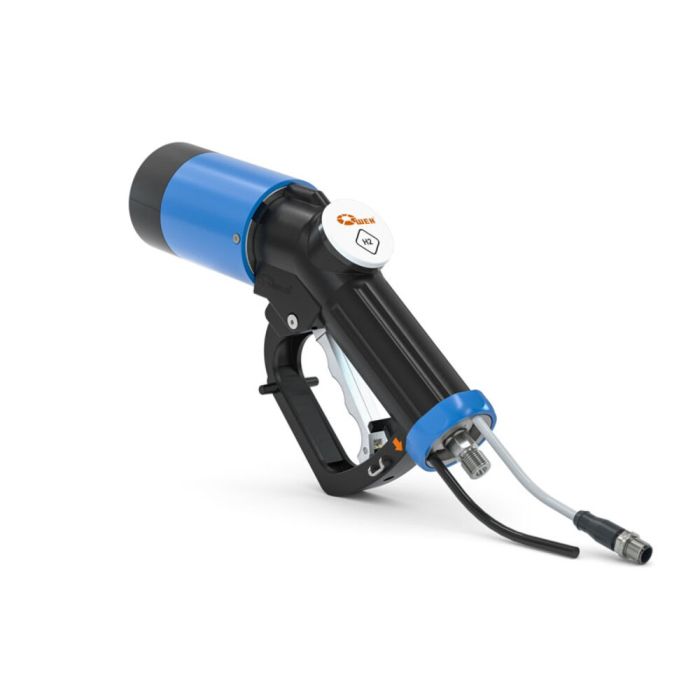

WEH® Fueling Nozzle TK20-S3 H₂ 35 MPa ENR Medium-Flow
The WEH® TK20-S3 H2 35 MPa ENR Medium-Flow Fueling nozzle with exchangeable data interface (ENR = exchangeable nozzle receiver) was developed for fast filling of cars with compressed, gaseous hydrogen (CGH2 ). Through to the larger nominal width, refueling with 120 g/s or higher is possible. In addition, this filling coupling is designed for a maximum operating pressure of 48.125 MPa (= MAWP according to ISO 19880-1:2020).
The fueling nozzle is additionally equipped with a purging line that allows purging with nitrogen during and after refueling process. This can prevent ingress of moisture and the formation of ice crystals during filling with precooled hydrogen.
The WEH® TK20-S3 H2 35 MPa ENR Medium-Flow offers optimum safety for the operator thanks to the locking mechanism. The Fueling nozzle remains connected to the receptacle until the locking mechanism is released by the operator.
| Purging line Outer / inner diameter | 6/4 mm |
|---|---|
| Nominal Pressure PN | 35 MPa |
| Max. allowable operating pressure PS | MAWP = 48.125 MPa according to ISO 17268 (PS = 481.25 bar) |
| Media temperature range | -40 °C up to +85 °C |
| Ambient temperature range | -40 °C up to +85 °C |
| Medium | Hydrogen |
| Material | Corrosion resistant |
| Sealing Material | Hydrogen resistant |
| Design | With plastic thermal protection Optimized impact protection to protect the data interface Exchangeable data interface acc. to SAE J2799 Integrated purging line Hand grip with mag |
| Nozzle Type | Type C acc. to SAE J2600:2015 and previous resp. ISO 17268:2020 and previous |
| Coding | H35MF Grade D according to ISO 17268-1:2025 |
| Weight | Approx. 2.65 kg |
| Medium for purging | Nitrogen or compressed air |
| Media Temperature Range Purging Medium | -40 °C to +85 °C (most effective >0°C) |
| Flow rate during purging | 500 Nl/h at max. 12 bar purging pressure |
| Conformity / Tests / Approvals | IR data interface: SAE J2799 and ATEX, NEC, KTL, CCC Design validation based on ISO 17268:2025 |
- WEH® EASY-TURN swivel joint approx. 250°
- Easy operation
- Exchangeable data interface (ENR)
- High flow rate
- Hand grip with magnet
- Integrated purging line for nitrogen flushing
- Max. allowable operating pressure 48.125 MPa (MAWP according to ISO 19880-1:2020)
- Optimized impact protection to protect the data interface
- Plastic thermal protection
- Single-hand operation
- Type C nozzle acc. to SAE J2600 resp. ISO 17268
- Compatible with pressure stage H35 Medium-Flow according to ISO 17268-1:2025
Fueling nozzle for rapid filling of buses and trucks with hydrogen in self-service operation.
