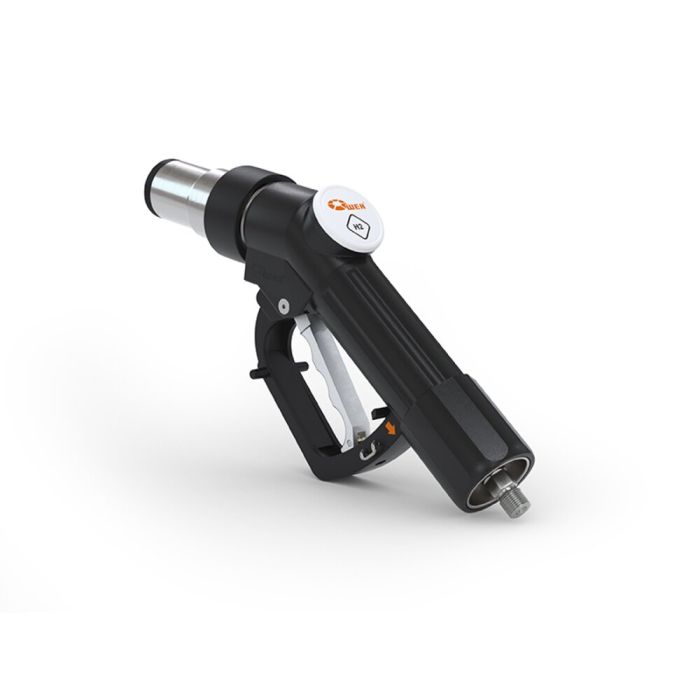

WEH® Fueling Nozzle TK17 H₂ 70 MPa
The WEH® TK17 H2 70 MPa was developed for refueling fuel cell electric cars with compressed hydrogen (CGH2).
The fueling nozzle with single-handed operation is just as quick and easy to use as the common petrol nozzle and has a similar look and feel. Simply lift the nozzle from the dispenser mounting and place it onto the vehicle‘s receptacle.
250° rotation makes for easy engagement with the vehicle‘s fuel receptacle.
Compress the actuation lever until locking lever engages and the fueling procedure begins.
The gaseous hydrogen can only flow through the line if there is a safe connection.
After refueling disengage the nozzle‘s locking lever and disconnect. Please note that refueling may bestopped or paused at any time.
The hand grip has a magnet for actuation of the magnet switch for activation of the dispenser.
The internal coding for pressure range and gas type ensures that the WEH® TK17 H2 70 MPa can be connected to the compatible WEH® Receptacles and also prevents the risk of confusion with natural gas.
| Nominal bore (DN) | 4 mm |
|---|---|
| Max. allowable operating pressure PS | MAWP = 87.5 MPa according to ISO 17268 (PS = 875 bar) |
| Nominal Pressure PN | 70 MPa |
| Temperature Range Media | -40 °C up to +85 °C |
| Temperature Range Ambient | -40 °C up to +85 °C |
| Media Inlet | UNF 9/16"-18 male thread, 60° inner cone |
| Design | With plastic thermal protection, cold protection and hand grip with magnet |
| Material | Corrosion resistant |
| Sealing Material | Hydrogen resistant |
| Nozzle Type | Type C acc. to SAE J2600:2015 and previous resp. ISO 17268:2012 and previous |
| Weight | Approx. 1.9 kg (4.12 lbs.) |
| Conformity / Tests / Approvals | Tests acc. to SAE J2600:2002 |
- Coding for pressure range / gas type
- Compatible with WEH® TN1 H2 70 MPa Receptacle profile
- Easy operation
- Hand grip with magnet
- High flow rate -> short filling times
- High-grade materials
- Left or right single-handed operation
- Plastic thermal protection
- Type C nozzle acc. to SAE J2600 resp. ISO 17268
- WEH® EASY-TURN swivel joint approx. 250°
- WEH® Jaw Locking Mechanism
Fueling nozzle for H2 fast filling of electric / hybrid cars with fuell cells (FCV) at self-service fueling stations.
