WEH® Fueling Nozzle TK16 H₂ High Flow

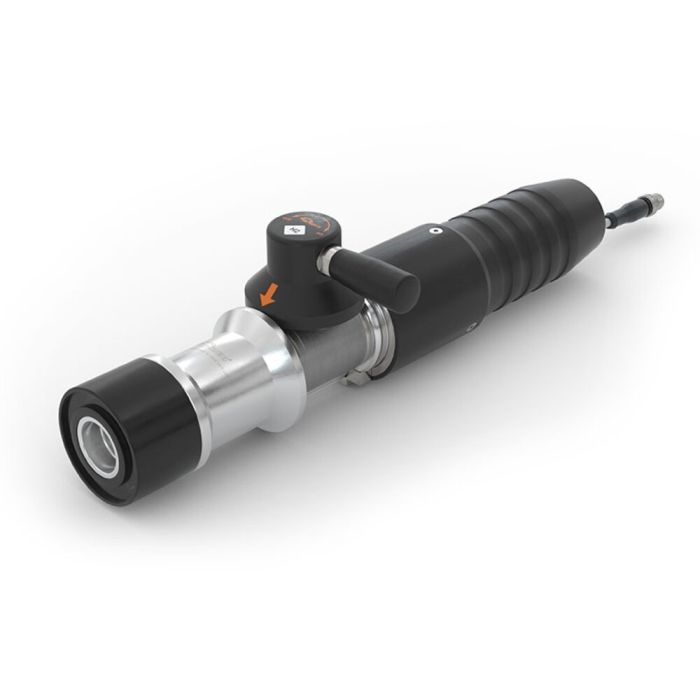

WEH® TK16 H2 High-Flow Fueling Nozzle with Data Interface provides a faster hydrogen refueling solution for buses and trucks.
An increased flow rate achieves even faster filling times.
The actuation lever is located on the integrated swivel joint making it easy to rotate into the optimal actuating position. The actuation lever needs less effort to actuate the nozzle.
The internal coding for pressure range and gas type ensures that the TK16 H2 High-Flow with data interface can be connected to the compatible WEH® Receptacles and also prevents the risk of confusion with natural gas. Furthermore the fueling nozzle has an interface (IR) for data transfer between vehicle and fueling station.
| Nominal bore (DN) | 8 mm |
|---|---|
| Max. allowable operating pressure PS | MAWP = 45 MPa according to ISO 17268 (PS = 450 bar) |
| Nominal Pressure PN | 35 MPa |
| Temperature Range Media | -20 °C up to +85 °C |
| Temperature Range Ambient | -40 °C up to +85 °C |
| Temperature Range | -20 °C up to +85 °C |
| Media Inlet | UNF 9/16"-18 male thread, SAE J514, 37° cone |
| Design | With plastic thermal protection, gas recirculation and data interface acc. to SAE J2601 |
| Material | Corrosion resistant |
| Sealing Material | Hydrogen resistant |
| Nozzle Type | Type A acc. to SAE J2600:2015 and previous resp. ISO 17268:2012 and previous |
| Weight | Approx. 2.4 kg (5.29 lbs.) |
| Conformity / Tests / Approvals | Fueling nozzle: tests acc. to SAE J2600:2002 IR data interface: ATEX; NEC on request |
- Compatible with WEH® TN1 H2 High-Flow Receptacle profile
- WEH® Jaw Locking Mechanism
- WEH® EASY-TURN swivel joint 240° for actuation lever
- Recirculation of the vented gas
- Integrated infrared data interface
- High-grade materials
- Easy operation
- Coding for pressure range / gas type
- Type A nozzle acc. to SAE J2600 resp. ISO 17268
- Plastic thermal protection
High-Flow fueling nozzle for H2 fast filling of buses and trucks at self-service fueling stations.
| Description | Document type | Language | File type | File size |
|---|
