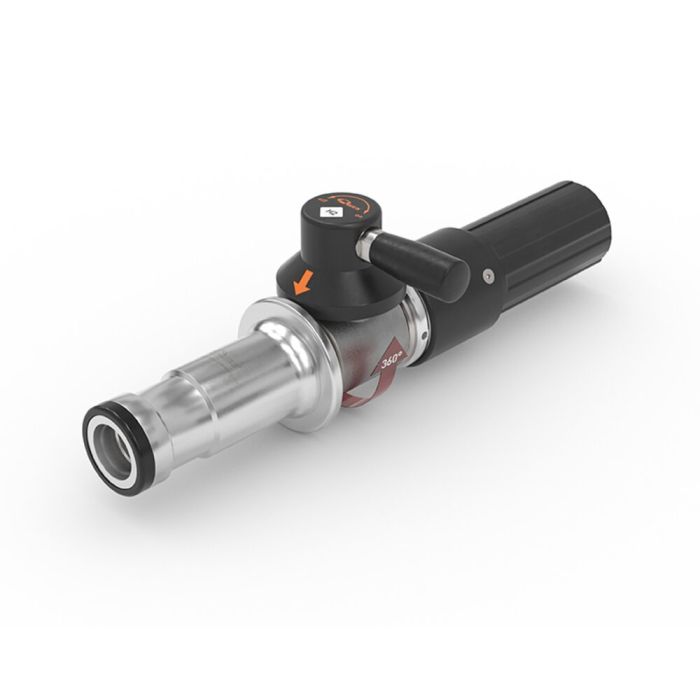

WEH® Fueling Nozzle TK16 H₂ High-Flow
For fast filling buses and trucks, self-service, 35 MPa
Part no.
C1-85042-X01
€0.00
The WEH® TK16 H2 High-Flow Fueling Nozzle provides a faster hydrogen refueling solution for buses and trucks.
An increased flow rate achieves even faster filling times.
The actuation lever is located on the integrated swivel joint making it easy to rotate into the optimal actuating position. The actuation lever needs less effort to actuate the nozzle.
The internal coding for pressure range and gas type ensures that the WEH® TK16 H2 High-Flow can be connected to the compatible WEH® Receptacles and also prevents the risk of confusion with natural gas.
| Nominal bore (DN) | 8 mm |
|---|---|
| Max. allowable operating pressure PS | MAWP = 45 MPa according to ISO 17268 (PS = 450 bar) |
| Nominal Pressure PN | 35 MPa |
| Temperature Range Media | -20 °C up to +85 °C |
| Temperature Range Ambient | -40 °C up to +85 °C |
| Media Inlet | UNF 9/16"-18 male thread, SAE J514, 37° cone |
| Design | With plastic thermal protection and gas recirculation |
| Material | Corrosion resistant |
| Sealing Material | Hydrogen resistant |
| Medium Note | Suitable for pre-cooled hydrogen |
| Weight | Approx. 1.8 kg (3.97 lbs.) |
| Conformity / Tests / Approvals | Tests acc. to SAE J2600:2002 |
- Coding for pressure range / gas type
- Compatible to WEH® TN1 H₂ High-Flow receptacle profile
- Easy operation
- High-grade materials
- Higher flow rate -> shorter filling times
- Plastic thermal protection
- Recirculation of the vented gas
- Type A nozzle acc. to SAE J2600 resp. ISO 17268
- WEH® EASY-TURN 360° swivel joint for actuation lever
- WEH® Jaw Locking Mechanism
High-Flow fueling nozzle for H2 fast filling of buses and trucks at self-service fueling stations.
