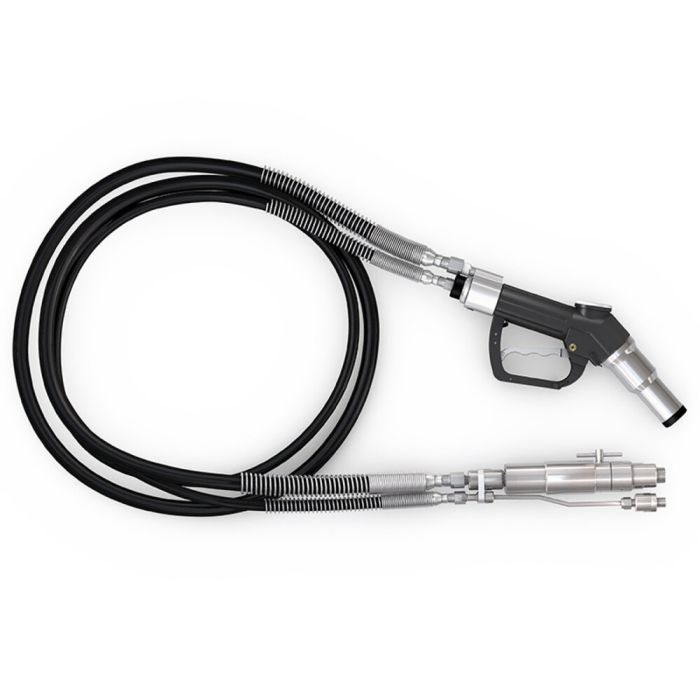

WEH® Fueling assembly TK17 CNG
Consisting of fueling nozzle, a hose set and a breakaway coupling
Part no.
TK17-CNG-FA
€0.00

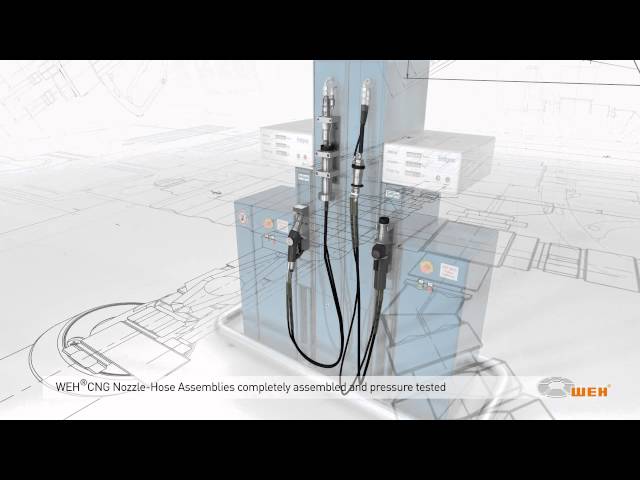

We also offer complete sets assembled and pressure tested for installation at fueling stations. The fueling assemblies consist of a fueling nozzle, a hose set and a breakaway coupling.
All fueling assemblies are available with different hose lengths and can either be delivered with a type TSA1 CNG breakaway coupling directly mounted at the dispenser or a type TSA2 CNG inline breakaway coupling mounted inbetween the hoses.
| Technical Nominal Size | 8 mm |
|---|---|
| Pressure Range | PS = 345 bar (5,000 psi) |
| Temperature Range | -40 °C up to +85 °C |
| Material | Corrosion resistant |
| Sealing Material | Natural gas resistant |
| Design | TK17 CNG fueling nozzle, hose set and breakaway coupling fully assembled and pressure tested |
- Fully assembled and pressure tested
- High flow rate -> short filling times
Fueling assembly for CNG fast filling of cars at self-service fueling stations.
