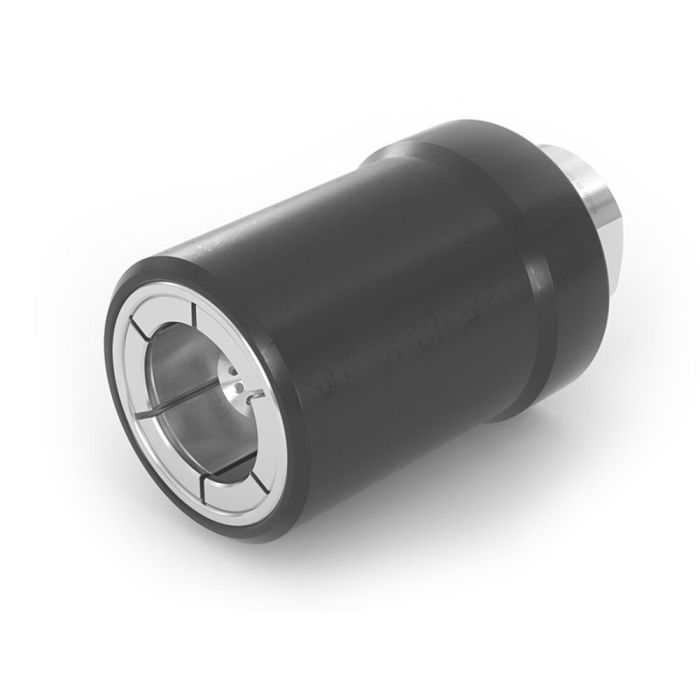

WEH® Defueling Nozzle TK23 CNG
For discharging CNG, no self-service, 200 bar
Part no.
C1-101404-X01
€0.00
The TK23 CNG defueling nozzle is designed specifically for evacuating and discharging CNGof cylinder bundles (e.g. on trailers).
The TK23 CNG is equipped with a pin, which opens the check valve in the TN5 CNG receptacle (without filter) and releases the flow. Now the CNG can be discharged from the cylinder bundles. Connecting and disconnecting can only occur in depressurised condition. The TK23 CNG is not equipped with an integrated check valve.
The WEH® TK23 CNG defueling nozzle is suitable for WEH® TN5 CNG receptacles without filter.
| Nominal bore (DN) | 10 mm |
|---|---|
| Pressure Range | TK23 CNG: PN = 250 bar (3,600 psi) | PS = 350 bar<br />TN5 CNG: PN = 250 bar (3,600 psi) | PS = 315 bar |
| Temperature Range | -40 °C up to +85 °C |
| Media Inlet | UNF 7/8"-14 female thread, SAE J1926-1 |
| Design | TK23 CNG: With plastic thermal protection TN5 CNG: Incl. fittings (only for nozzles with tube fitting) |
| Material | Corrosion resistant |
| Sealing Material | Natural gas resistant |
| Weight | Approx. 1 kg (2.20 lbs.) |
- Compact design
- Extremely high flow rate
- High-grade materials
- Plastic thermal protection
- Push-Pull actuation
- WEH® Jaw Locking Mechanism
Defueling nozzle for discharging of CNG to be used with WEH® TN5 CNG receptacles without filter. Operation only by specially trained service personnel. Not for self-service operation!
