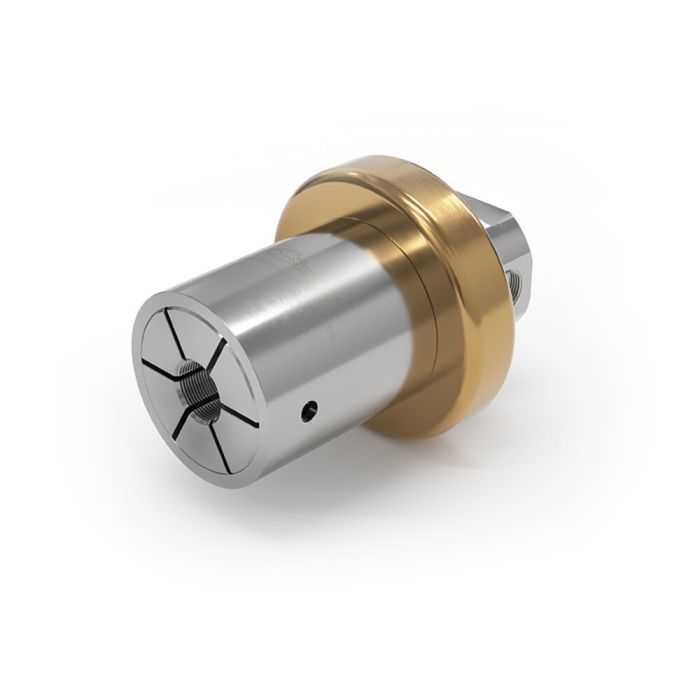

WEH® Connector TW751
How to save time and money
The WEH® TW751 Quick connector has been developed for function- and pressure testing of externally threaded manometers up to a max. pressure (PN) of 1000 bar. Tedious hand tightening is no longer needed and intricate testing devices are a thing of the past. In comparison to threaded connections there are significant time and cost reductions due to the efficient handling of WEH® Connectors. It is also ideal for automated test procedures.
The connector is characterised by its robust design and ease of operation. The connection procedure is quite simple:
Activate the pilot pressure, so that the sealing disc retracts. Afterwards pull back the grip sleeve - the clamping jaws spread apart and the test piece can be inserted. Push the grip sleeve completely forward - the clamping jaws lock the test piece. Relieve the pilot pressure - the sealing disc moves forward and reliably seals the connection. Testing can now proceed.
The WEH® TW751 quick coupling is equipped with a NBR front seal. Other sealing materials on request. It is the customer‘s responsibility to clarify the media compatibility.
| Pilot Pressure | 5 - 8 bar (75 - 120 psi) |
|---|---|
| Temperature Range | +5 °C up to +60 °C |
| Actuation | Manual actuation via grip sleeve or pneumatic actuation |
| Material | Corrosion resistant stainless steel and brass |
| Sealing Material | NBR |
- Automation possible
- Compact design
- Connection in seconds
- Ergonomic design
- High-grade materials
- Increased productivity & Cost reductions
- No hand tightening required
- WEH® Jaw Locking Mechanism
Quick connector for pressure and function testing of manometers with male thread. Suitable for automated testing systems.
