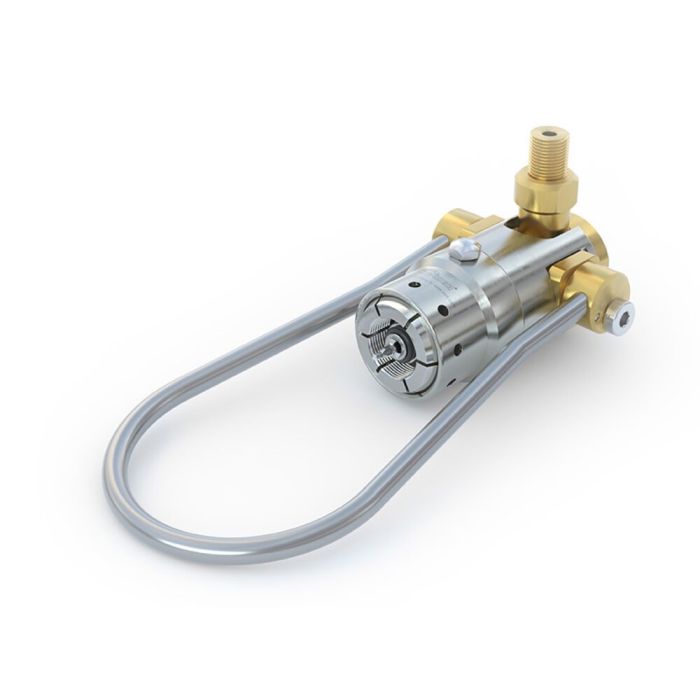

WEH® Connector TW57
For residual pressure valves for filling of gas cylinders with male thread, loop actuation, max. 250 bar
Part no.
TW57-RPV-250
€0.00
| Max. allowable operating pressure PS | 250 bar (3,600 psi) |
|---|---|
| Temperature Range | +5 °C up to +80 °C +5 °C up to +60 °C (O₂) |
| Medium | Oxygen, nitrogen, CO₂, air, inert gases, medical gases |
| Leak Rate | 1 x 10-3 mbar x l/s |
| Actuation | Manual actuation via bail handle (handle depending on cylinder valve type) |
| Design | With RPV pin |
| Material | Corrosion resistant stainless steel and brass |
| Sealing Material | Acc. to gas type |
| Conformity / Tests / Approvals | Type approval for suitability against adiabatic compression available |
- Compact design
- Connection in seconds
- Easy to connect
- For gas cylinders with male thread
- High-grade materials
- No hand tightening required
- Suitable for pallet filling
- Suitable for right or left handed operation
- WEH® Jaw Locking Mechanism
Quick Connector for filling of gas cylinders 3,000 psi with male thread (with a residual pressure valve).
