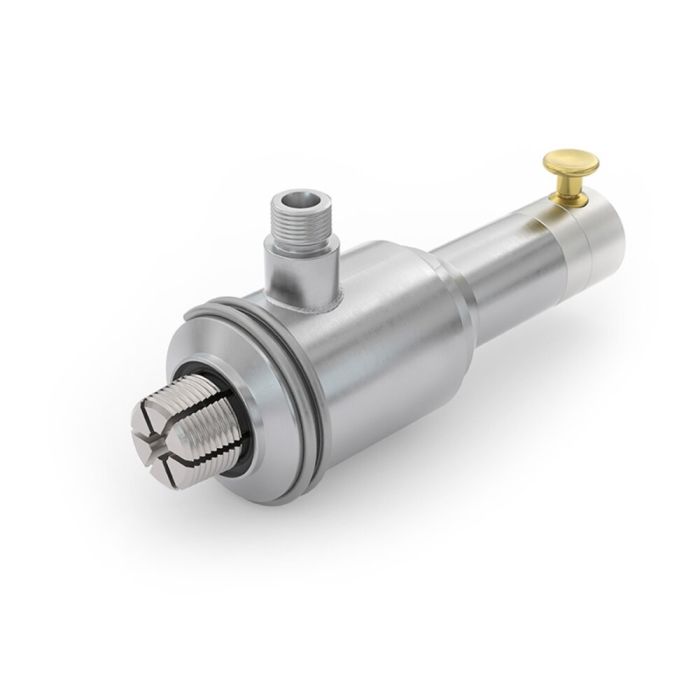

WEH® Connector TW17 Gas
For testing of gas cylinders with water, Actuation optional manually or pneumatically, max. 350 bar
Part no.
TW17-GAS
€0.00
The WEH® Test Connector TW17 offers time saving on pressure testing of gas cylinders by eliminating tedious manual threading.
Depress the pilot actuation button and simply push the WEH® TW17 Quick Connector into the female thread of the gas cylinder. Release the valve button and the pressure-tight connection is made.
The cylinder can now be leak tested with water. The test procedure is regulated by an external control unit and is ideally suited for automation, automated testing systems.
| Nominal Pressure PN | 280 bar (4,060 psi) |
|---|---|
| Max. allowable operating pressure PS | 350 bar (5,000 psi) |
| Pilot Pressure | 6 - 8 bar (90 - 120 psi) air |
| Temperature Range | +5 °C up to +80 °C |
| Medium | Water |
| Leak Rate | 1 x 10-3 mbar x l/s |
| Material | Corrosion resistant stainless steel and brass |
| Sealing Material | NBR |
- Automation possible
- Connection in seconds
- Different actuations
- High-grade materials
- Increased productivity & Cost reductions
- No hand tightening required
- Robust construction
- Suitable for water pressure testing of gas cylinders
- WEH® Jaw Locking Mechanism
Quick Connector for automated pressure testing of gas cylinders with water.
