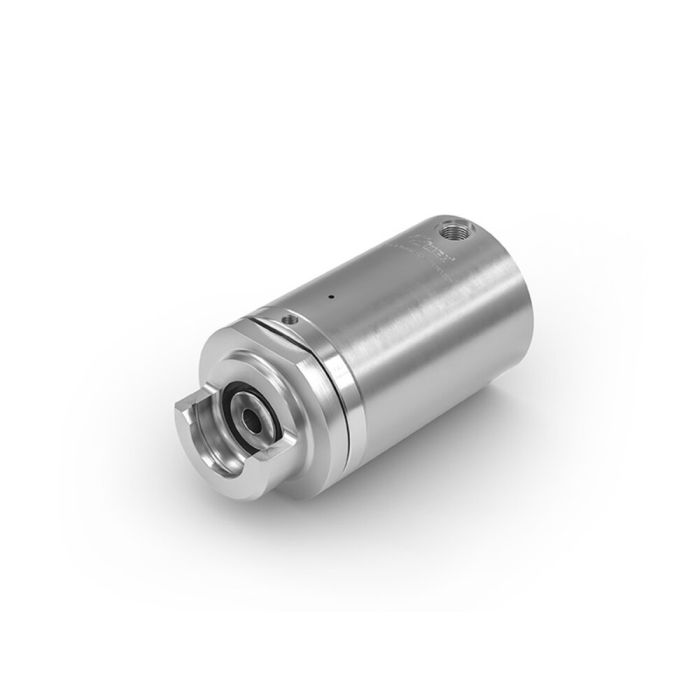

WEH® Connector TW132
The WEH® TW132 Quick Connector is the low pressure version of the WEH® TW130 Quick Connector. The connector has been developed specially for testing components with banjo tube connections, hose and tube connections with sleeve nuts and similar configurations. Underwater applications are possible.
The compact design and ease of operation enables cost-effective testing, even for high quantities. The connector is actuated pneumatically. The sample holder can be adapted to suit the customer sample.
The TW132 is rated for a pressure range up to max. 50 bar. Automation is possible.
| Max. allowable operating pressure PS | Max. 50 bar |
|---|---|
| Pilot Pressure | 6 - 8 bar (90 - 120 psi) |
| Pilot Pressure Port P1 | G1/8" female thread |
| Temperature Range | -10 °C up to +80 °C |
| Medium | Air, water, mineral oils, helium |
| Actuation | Pneumatic actuation, automation is also possible |
| Material | Base unit: Corrosion resistant stainless steel, anodized aluminium |
| Sealing Material | NBR |
| Conformity / Tests / Approvals | PED 2014/68/EC |
- Connection in seconds
- Ergonomic design
- No hand tightening required
- Suitable for automated testing
- Testing of high quantities
- Robust construction
Quick connector for pressure and function testing of components with banjo tube connection, hose / tube connections with sleeve nuts, e.g. for heat exchangers, high pressure hoses, etc.
