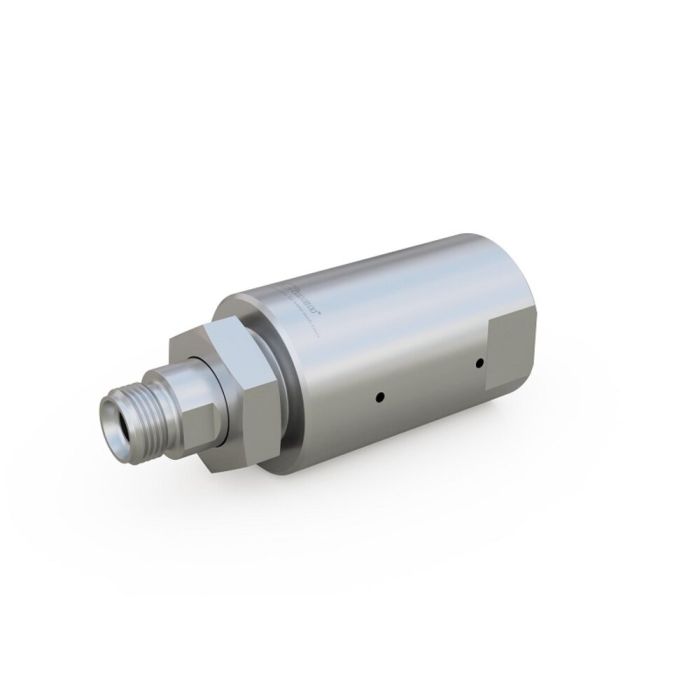

WEH® Check Valve TVR9 H2 70 MPa
With the TVR9 H2 70 MPa WEH offers a high-performance check valve for use in hydrogen road vehicles or hydrogen fueling stations of the latest generation.
The WEH® TVR9 H2 70 MPa check valves provide a reliable function wherever hydrogen should only flow in one direction within a pipe system and must be prevented from a return flow.
The sealings in the valve are arranged to prevent them from being damaged by dirt particles in the gas flow. The WEH® TVR9 H2 70 MPa Check valve is made of corrosion-resistant stainless steel achieving a very durable unit due to its robust internal structure
| Technical Nominal Size | 4 mm |
|---|---|
| Nominal Pressure PN | 70 MPa |
| Max. allowable operating pressure PS | MAWP = 87.5 MPa according to ISO 17168 (PS = 875 bar) |
| Temperature Range | -40 °C up to +85 °C |
| Media Inlet | UNF 7/16"-20 male thread |
| Filter Material | 10 μm |
| Material | Corrosion resistant |
| Sealing Material | Hydrogen resistant |
| Design | With or without integrated particle filter (10 μm) |
| Conformity / Tests / Approvals | Based on TN9 H2 70 MPa developed in accordance with ISO 17268:2020 |
- Sealing-friendly design: Robust, durable, and easy to maintain
- Available with or without filter
- High flow rate of up to 90 g/s for fast refueling
- Quiet opening and closing
Check valve for road vehicles, also suitable for installation in hydrogen fueling stations.
The WEH® TVR9 H2 70 MPa product family is offered as a return flow prevention acc. to DIN EN 736-1 for installation in H2 systems and pipelines.
