WEH® Breakaway Coupling TSA5 H₂

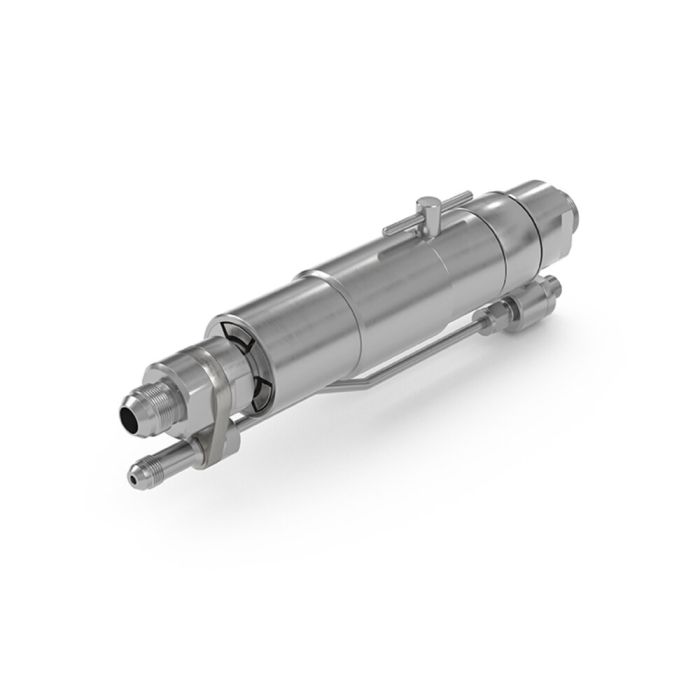

The break-away coupling type TSA5 H₂ (bus/truck) offer additional safety for your fueling station. The coupling consists of a receptacle and a nozzle which are installed between the dispenser and the fueling hose.
In the event of accidental deployment, e.g. driving a vehicle from the dispenser with the nozzle remaining in the vehicle fuel port, the coupling will separate and protect your dispensing equipment against damage. The detached coupling can be easily reattached and placed back in service after having been function tested.
The integrated filter system provides clean hydrogen and is easy to maintain.
The WEH® Breakaway Coupling consists of a coupling body, a receptacle insert and a gas recirculation with check valve.
On request we also offer complete nozzle-hose-assemblies consisting of a fueling nozzle, a hose set and a breakaway coupling.
| Nominal bore (DN) | 12 mm |
|---|---|
| Max. allowable operating pressure PS | MAWP = 45 MPa according to ISO 19880-1 (PS = 450 bar) |
| Nominal Pressure PN | 35 MPa |
| Temperature Range Media | -20 °C up to +85 °C |
| Temperature Range Ambient | -40 °C up to +85 °C |
| Media Inlet | G3/4" male thread |
| Design | With gas recirculation and filter (40 μm) |
| Material | Corrosion resistant stainless steel, aluminium |
| Sealing Material | Hydrogen resistant |
| Break force | 222 - 667 N |
- Check valve at venting line
- Installation at the dispenser
- Integrated cleanable filter (40 μm)
- No additional tool necessary
- Reusable without factory servicing
- Small compact design
Breakaway coupling for H2 bus and truck fueling stations for direct installation at the dispenser.
