Manifold TMF900-S1 H2
Gas distributors for installation in H2 systems and vehicles
Part no.
C1-192622
€0.00
Gas distributors reduce the number of sealing points and simplify installation, which can be carried out in a single block. They can be used to distribute gases to different pipes and to combine fittings in a manifold. Dimensions and the type and number of connections can be customized according to customer requirements. Filters, check valves, and other components can also be installed at the factory.
| Max. allowable operating pressure PS | 48.125 MPa |
|---|---|
| Temperature Range | -40 °C up to +85 °C |
| Media Inlet | 13/16“-16 UN female thread |
| Material | Stainless steel |

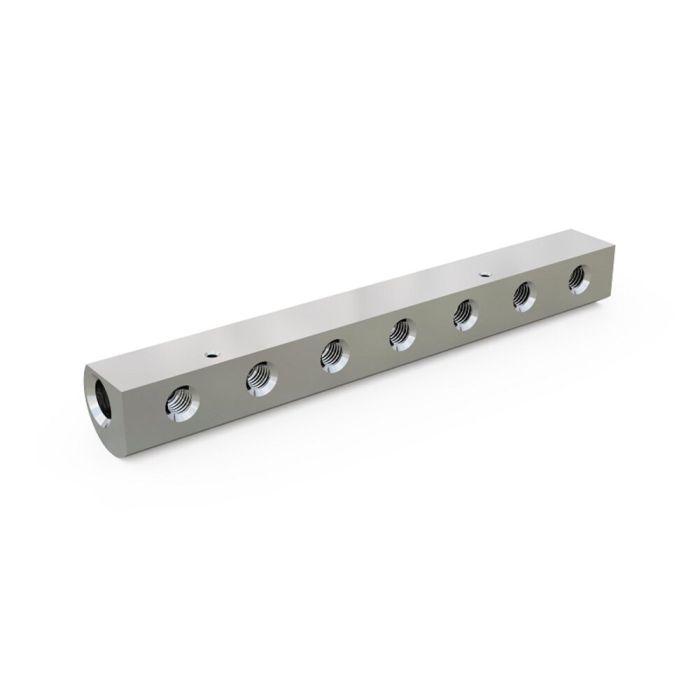

| Design | Distribution block with one media inlet and six outlets, as well as mounting holes. |
| Working Pressure WP | Depending on design |
- Dimensions, type, and number of connections can be customized to customer requirements
- Simple and quick installation
- Reduces sealing points in gas systems and vehicles
Distribution block for hydrogen applications in gas engineering systems or vehicles.
