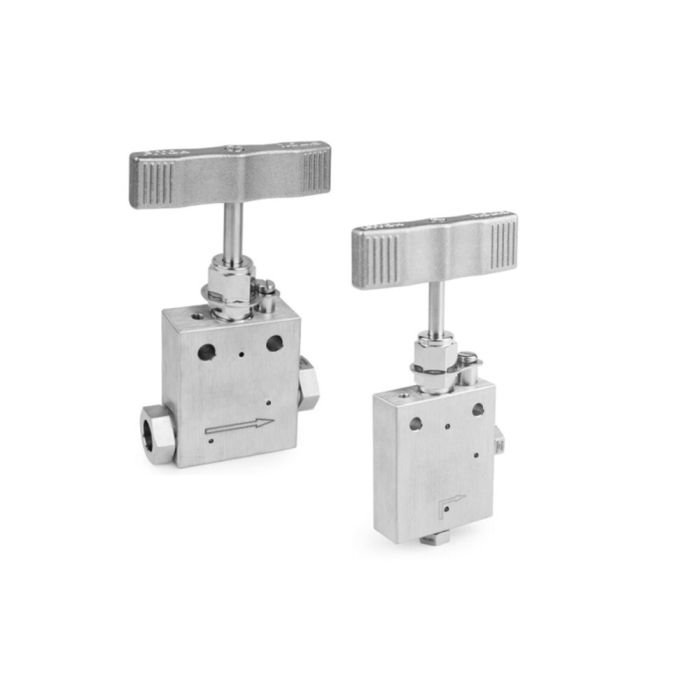

WEH® Hand Valve (Medium pressure)
Wherever the media flow within a pipe system needs to be manually shut off or opened in both directions, WEH® needle valves perform this function with absolute reliability.
The valves are extremely smooth-running and durable, as the valve needle and the rotating valve spindle are decoupled from each other. The valve needle with regulating tip and the spindle are shaped in such a way that the flow can be increased/regulated slowly and precisely when the valve is opened (6–7 turns to fully open). Alternatively, versions with a V-tip for use as a shut-off valve only are available on request (2–3 turns to fully open).
WEH® needle valves can be mounted either frontally in panels (bore diameter 6.35 mm) or laterally on rails or holders (bore diameter depending on size).
| Pressure Range (PS) | 1,379 bar / 20,000 psi |
|---|---|
| Temperature Range | -73°C to +232°C |
| Material | High-strength stainless steel |
| Connection geometry | Medium pressure fitting 60° Cone & Thread |
| Conformity / Tests / Approvals | Pressure equipment type: Pipe-like, pressure-retaining piece of equipment Classification: Article 4, paragraph 3 |
- Delivery includes pre-assembled pressure rings and pressure screws
- Needle valves for shutting off and regulating flow in high pressure lines
- Metal sealing seat for high sealing requirements and long service life
- Versions with replaceable sealing package on the valve seat available
- Standard version with regulating tip; versions with V-tip available on request
WEH® medium pressure needle valves are designed for applications with both liquid and gaseous media in fluid group 2 DGR.
Special versions are available for hydrogen applications. Please feel free to inquire!
