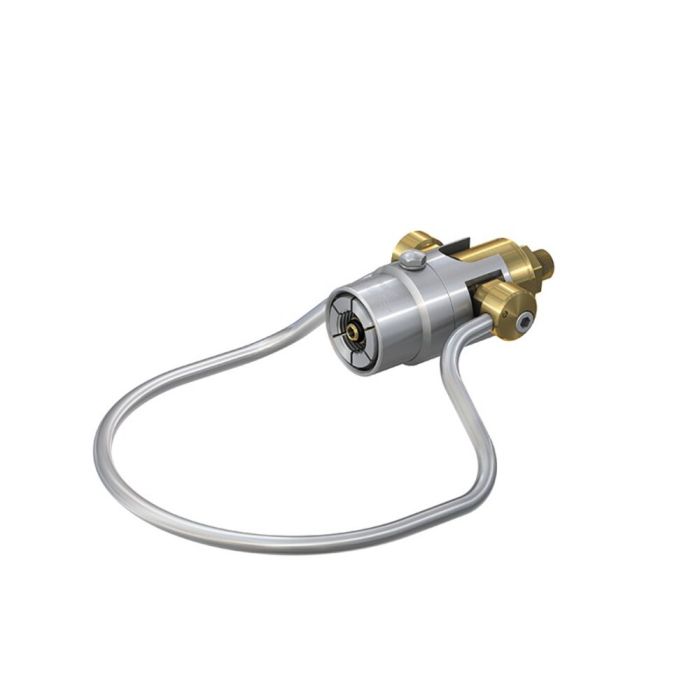

CLICKMATE® Connector TW157 (US-Version)
The CLICKMATE® TW157 with operating handle is designed for filling air storage cylinders.
Retaining the same outstanding technical functionality as our CLICKMATE® TW157 with operating lever, the type has been adapted to fit the SCOTT RevolveAir Charge Station. The CLICKMATE® is rigidly mounted to the SCOTT Charge Station and provides an instant connection to the CGA thread of the cylinder valve without hand / wrench tightening. Just connect the cylinder valve thread to the CLICKMATE®. The connection is made by lowering the operating handle through 90° which locks the split jaws onto the cylinder valve. The integrated safety peg prevents a disconnection under pressure.
The CLICKMATE® TW157 is rated for pressure ranges up to 6,000 psi.
All connectors are subjected to extensive pressure and long-term tests (100,000 cycles).
| Max. allowable operating pressure PS | Up to 6,000 psi |
|---|---|
| Temperature Range | +5 °C up to +70 °C |
| Medium | Respiratory air (compressed air) |
| Media Inlet | NS 1"-14 male thread |
| Actuation | Manual actuation via operating loop (loop depending on cylinder valve type) |
| Material | Corrosion resistant stainless steel and brass |
| Sealing Material | FKM |
- Connection directly to the standard cylinder valve thread
- Filling of air storage cylinders up to 6000 psi (CGA 346/CGA 347)
- For firmly mounting to SCOTT RevolveAir Charge Station
- Improving operational safety and ergonomics
- Quick connection in seconds without hand tightening
Filling of air storage cylinders in SCOTT RevolveAir Charge Stations.
