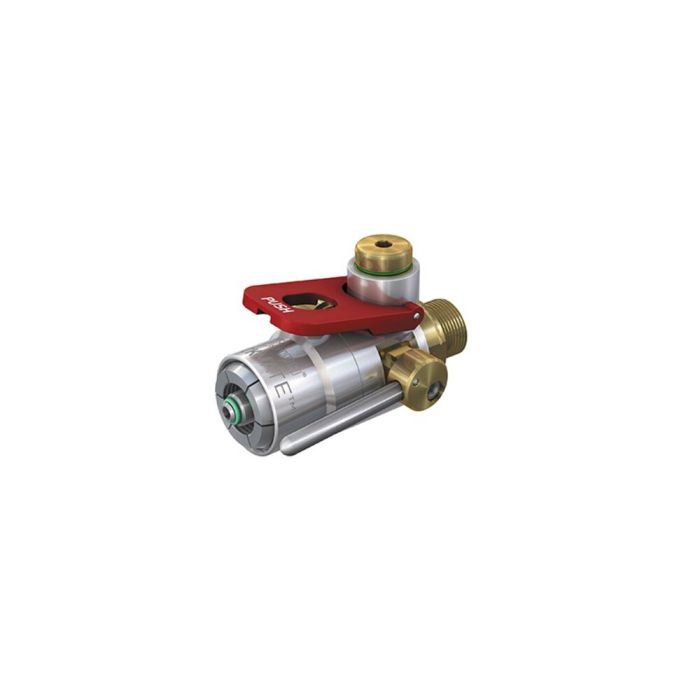

CLICKMATE® Connector TW157 (US-Version)
For BA filling of air storage cylinders CGA346 / CGA347, lever actuation, up to 6,000 psi
Part no.
C1-102859-X01
€0.00
The CLICKMATE® TW157 provides a connection in seconds to the CGA thread of the cylinder valve without hand / wrench tightening.
Just place the quick connector onto the cylinder valve until it stops. The connection is made by lowering the operating lever through 90° which locks the split jaws onto the cylinder valve. The integrated safety peg prevents a disconnection under pressure.
Existing hand tight nuts / connectors can be retrofitted without problems.
| Max. allowable operating pressure PS | Up to 6,000 psi |
|---|---|
| Temperature Range | +5 °C up to +70 °C |
| Medium | Respiratory air (compressed air) |
| Media Inlet | NS 1"-14 male thread |
| Actuation | Manual actuation via operating loop (loop depending on cylinder valve type) |
| Material | Corrosion resistant stainless steel and brass |
| Sealing Material | FKM |
- Connection directly to the standard cylinder valve thread
- Easy retrofitting of existing SCBA filling systems
- Improving operational safety and ergonomics
- Quick connection in seconds without hand tightening
Filling of air storage cylinders in breathing air centers of fire brigades.
