Check Valve TVR60-S1
Steel, 0 - 300 bar
Part no.
TVR60-S1
€0.00

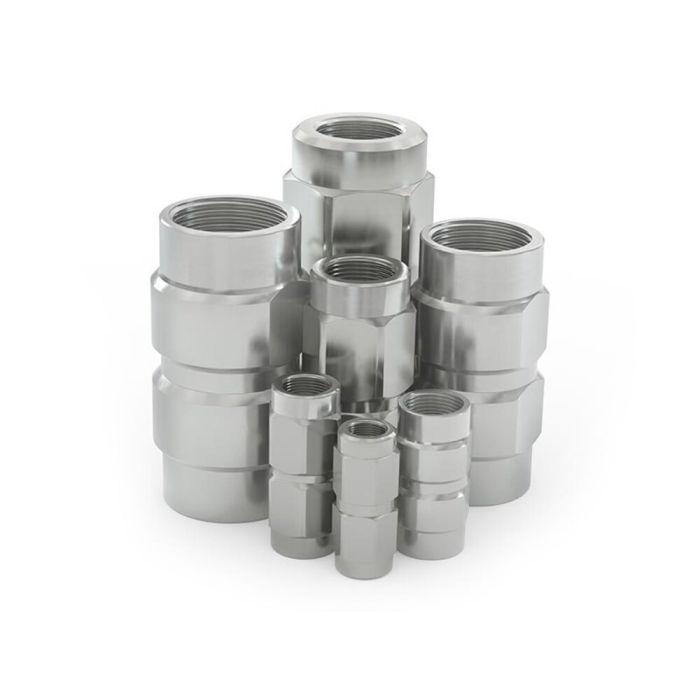

The TVR60 check valves of galvanised steel are specially designed for applications with hydraulic oil and other non aggressive liquids in industry and agriculture.
Thanks to the metal seal, no O-rings are required. This makes the check valves highly wear-resistant. Furthermore, the return of fluid into the circuit is prevented.
The check valves are available with female threads on both sides for standard dimensions from G1/8" up to G1 1/4". Other connection sizes and versions are available on request.
| Nominal bore (DN) | Acc. to design |
|---|---|
| Max. allowable operating pressure PS | 300 bar, acc. to design |
| Cracking Pressure | 0.35 bar |
| Temperature Range | -20 °C up to max. +300 °C |
| Media Inlet | G1/8, G1/4" |
| Media Outlet | G1/8", G1/4", G3/8", G1/2", G3/4", G1", G1 1/4", G1 1/2", G2" |
| Housing Material | Galvanised steel |
| Sealing Material | Metallic |
| Valve Seat | Metallic sealing cone seat, without o-ring |
| Flow Direction | B1 -> B2 |
| Product Series | TVR60-S1-A02 |
- Galvanised steel
- Highly resistant to stress during pressure peaks

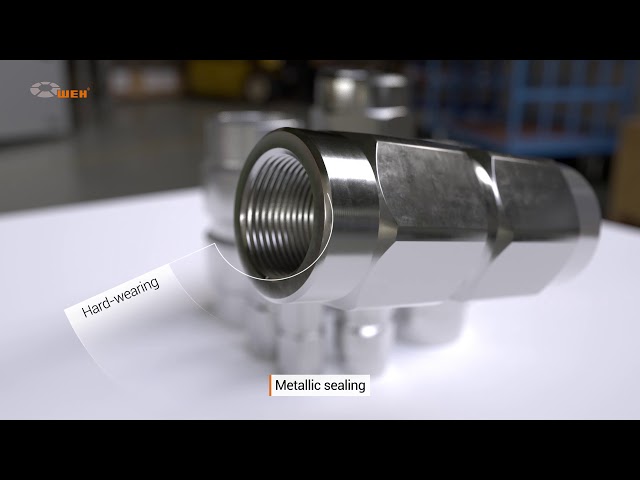

- Metal-to-metal sealing system; without o-ring
- Prevent fluid return in the circuit
Hydraulic (oils of fluid group 2 within the meaning of the Pressure Equipment Directive 2014/68/EU) and pneumatic applications in industry, agriculture and construction machinery.
