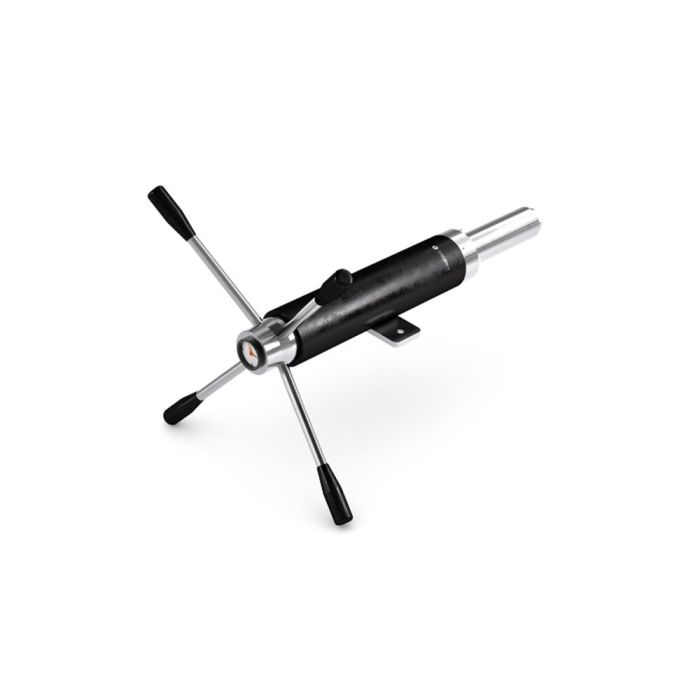

baromax manual Spindle Pump
Manual Spindle Pumps – Precise and Flexible Pressure Generation
baromax manual spindle pumps are the ideal solution when a simple, cost-effective, yet precise method is required to generate high pressures with small volumes.
They stand out through smooth operation, long service life, and an ergonomic design. Four sturdy handles ensure easy handling and reduce the required manual force, while the integrated position indicator keeps the exact piston position clearly visible at all times.
A key advantage: baromax hand spindle pumps operate completely independently of power or compressed air, making them perfect for mobile applications. They allow fine adjustment of pressure and flow rate, tailored to measurement tasks and system requirements.
Available in various models for different media, temperature ranges, and pressure systems, we also offer complete solutions – for example, combined with calibrated pressure measurement or as a portable unit.
Rely on precision, flexibility, and reliability – with baromax manual spindle pumps.
| Temperature Range | +5 °C up to +50 °C |
|---|---|
| Possible pressure ranges | PS = 500 up to 3,000 bar |
| Possible volumes | 0.25 up to 30 l |
| Max. possible length | 2,000 mm |
| Medium | Fluids according to fluid group 2 DGR, e.g. hydraulic oil |
| Material | High-strength stainless steel |
| Connection system | Cone & Thread (60° HP-Fitting) |
| Conformity / Tests / Approvals | Pressure equipment type: Vessels according to article 2 No. 2 of the Pressure Equipment Directive Classification Article 4 paragraph 3 |
- Good accessibility to all connections
- Easy installation in any installation position
- Low-maintenance and durable construction made of high-quality steel
- Volume & operating pressure adaptable to customer requirements
baromax manual spindle pumps are commonly used in laboratories, workshops, and experimental setups for testing, calibration, and pressure generation. Thanks to their compact design and low weight, they are ideal for both mobile applications and stationary systems.
